Home >> Honda >> 2008 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Harness >> Starter Sub-Harness (L4)

Starter Sub-Harness (L4)

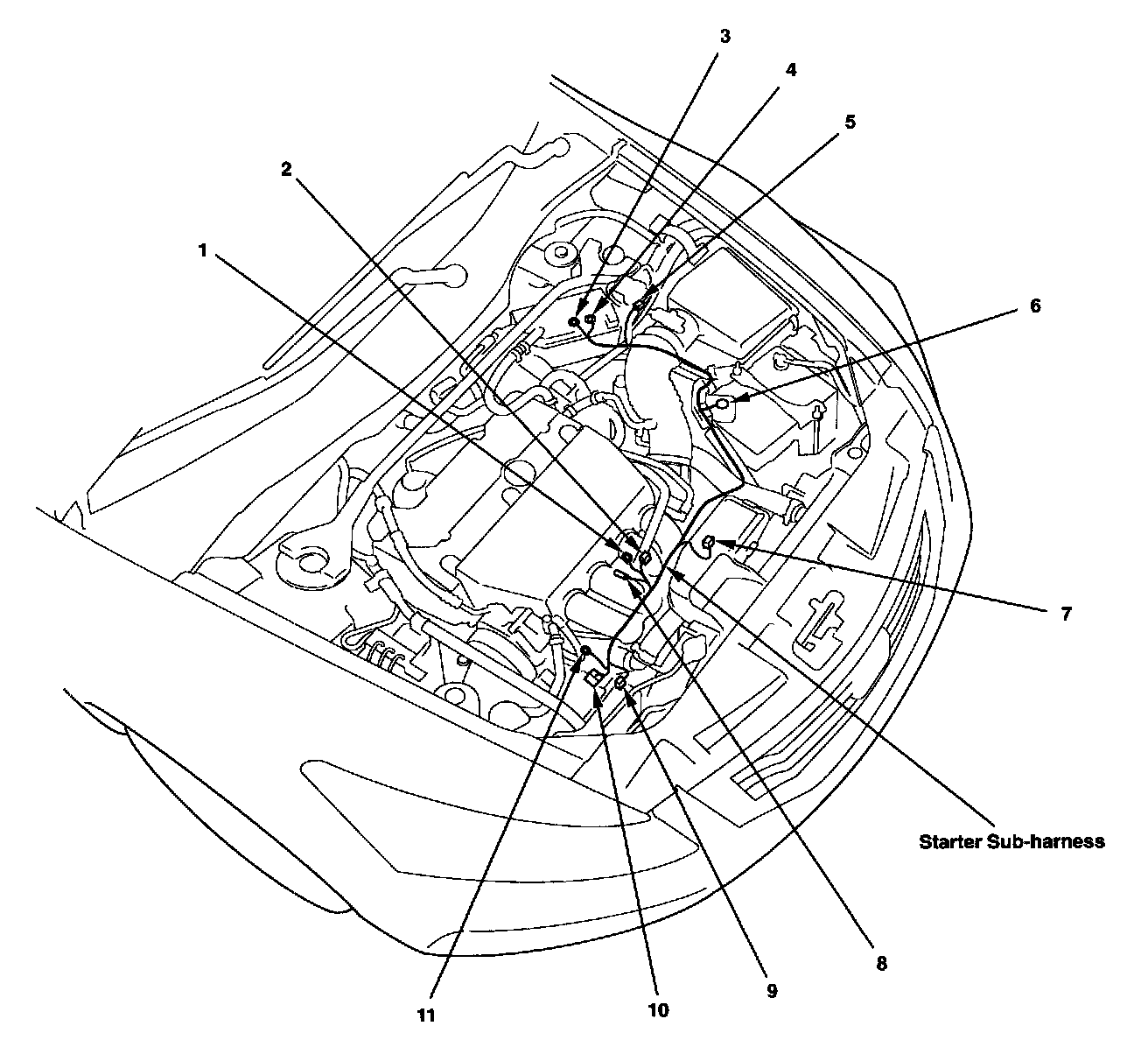

Harness Location View:

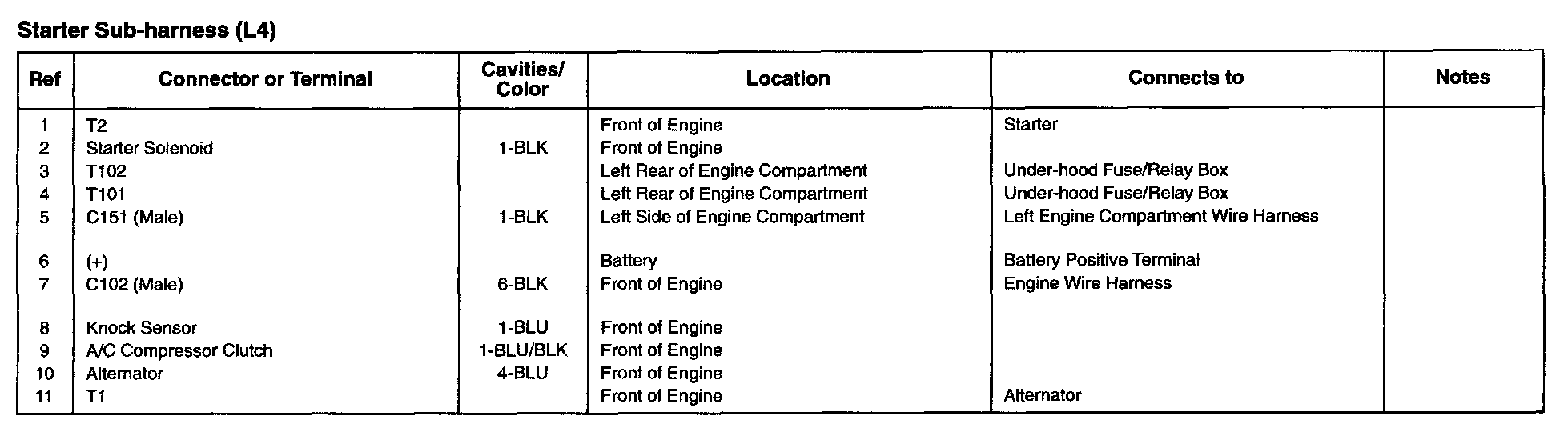

Starter Sub-harness (L4):
