Connector Views
>>
Navigation System
>>
System Diagram
System Diagram

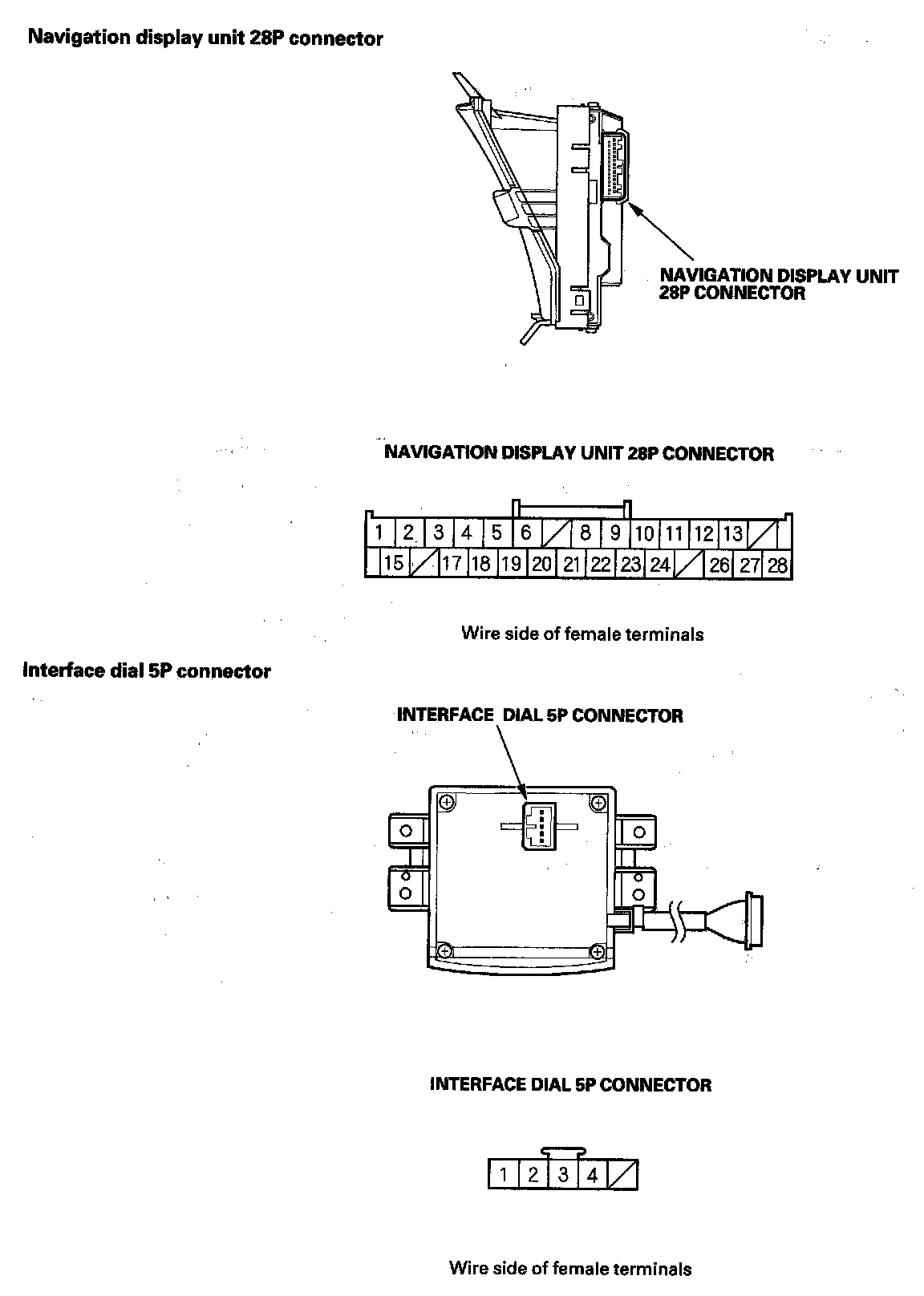

Navigation Unit Connectors (Part 1):

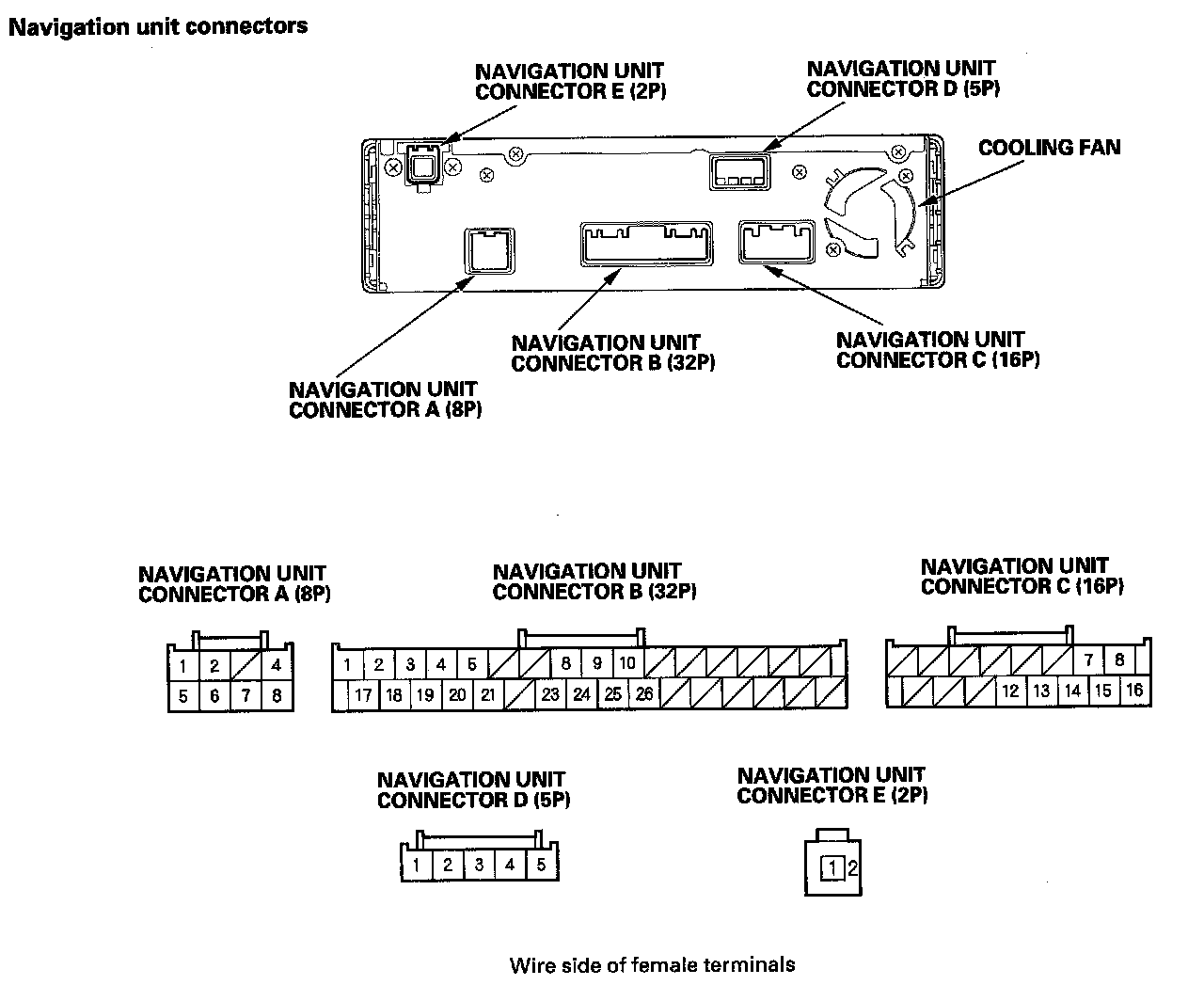

Navigation Unit Connectors (Part 2):
