Body Emblem: Service and Repair

Emblem/Sticker Replacement

2-door

NOTE: When removing the emblems/sticker, take care not to scratch the body.

1. To remove the front "H" emblem, remove the front bumper.
2. Clean the body surface with a sponge dampened in isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.

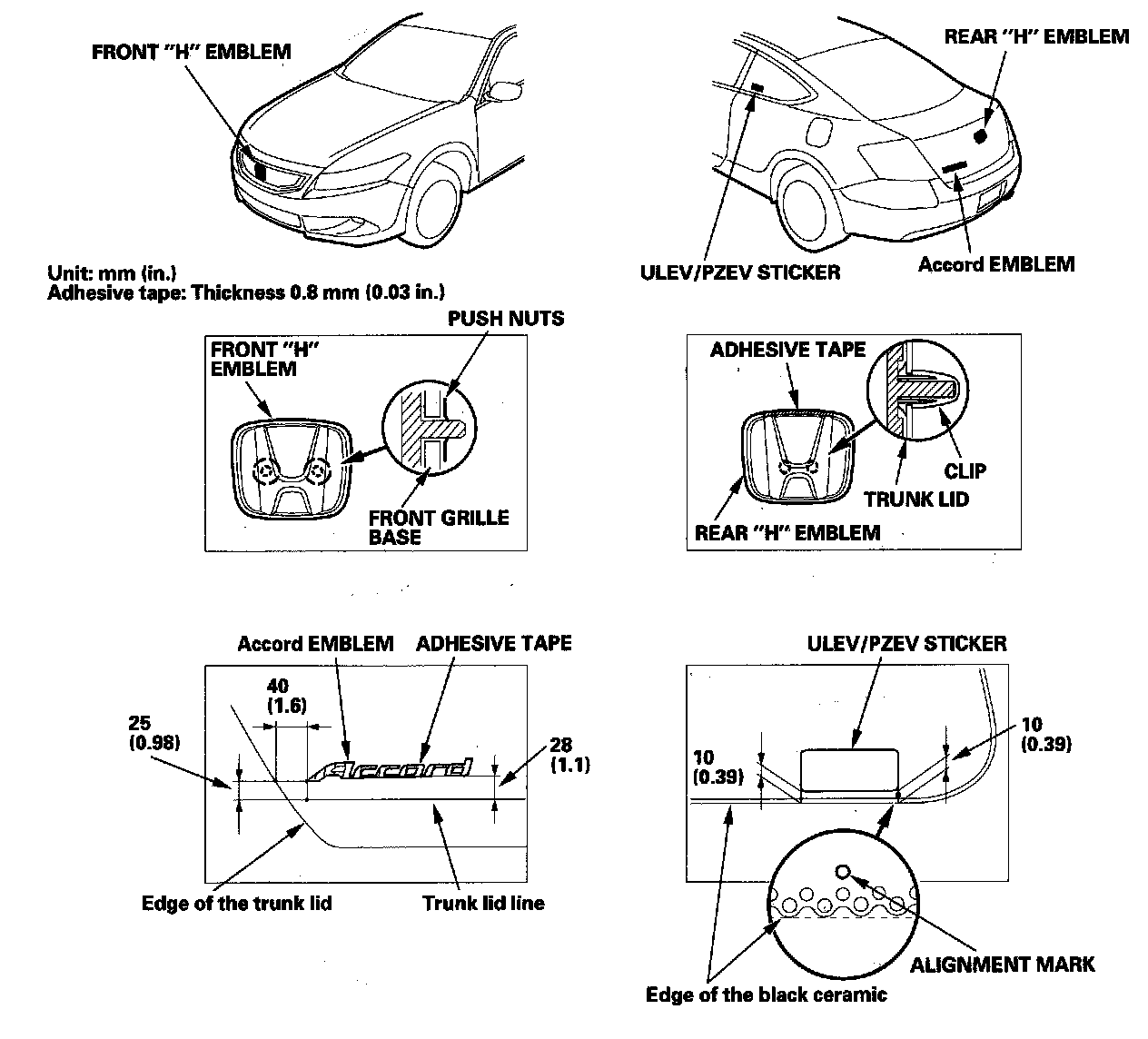

3. Apply the emblems/sticker where shown. When installing the ULEV/PZEV sticker on the inside surface of the left quarter glass, align the sticker with the edge of the black ceramic as shown, then press the sticker into place, and remove the application tape.






4-door

NOTE: When removing the emblems/sticker, take care not to scratch the body.

1. To remove the front "H" emblem, remove the front grille.
2. Clean the body surface with a sponge dampened in isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.

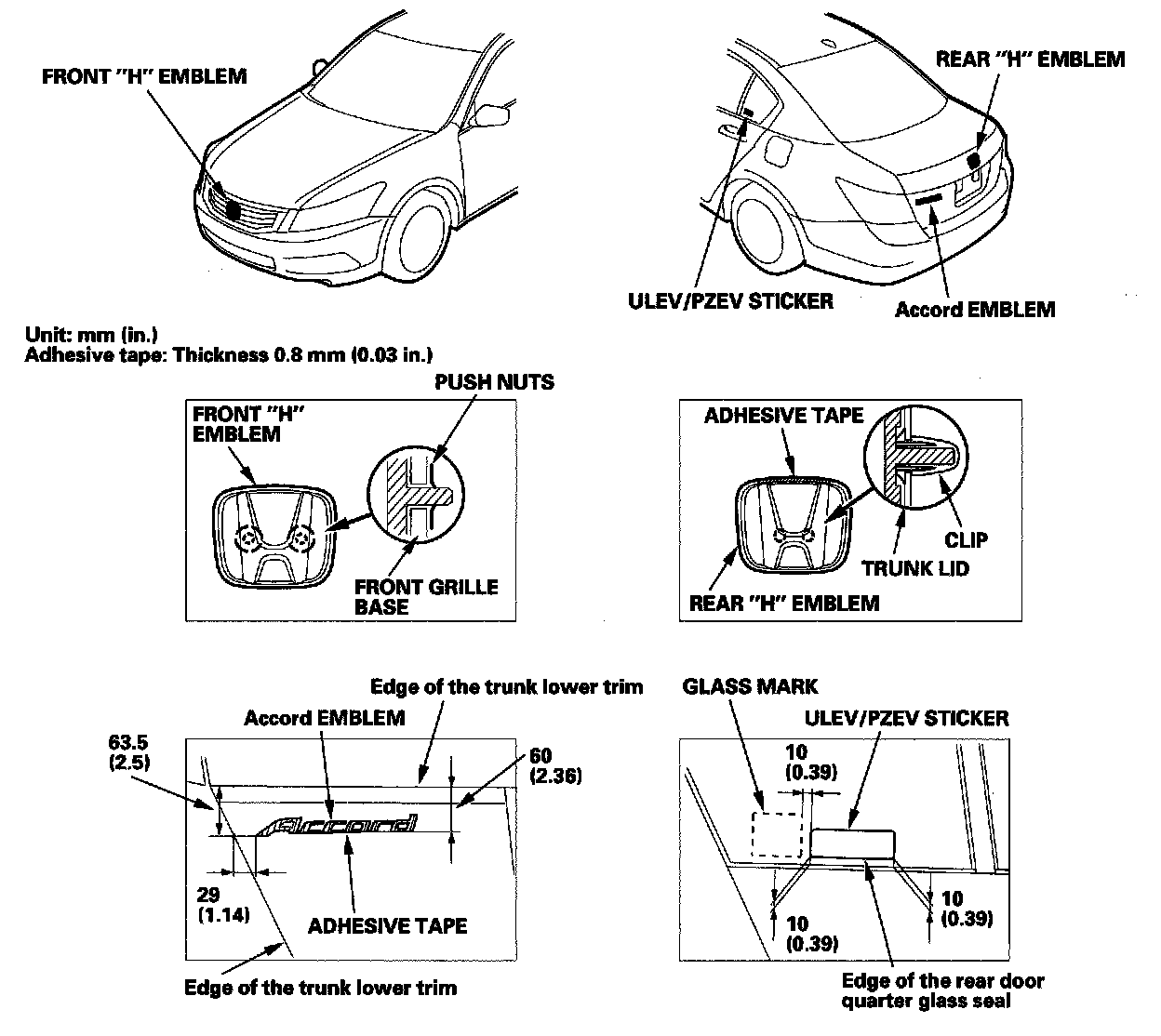

3. Apply the emblems/sticker where shown. When installing the ULEV/PZEV sticker on the inside surface of the left rear door quarter glass, align the sticker with the edge of the glass mark and the rear door quarter glass seal as shown, then press the sticker into place, and remove the application tape.
