Amplifier: Service and Repair

Stereo Amplifier Removal/Installation

Premium Audio System

1. Remove the glove box.

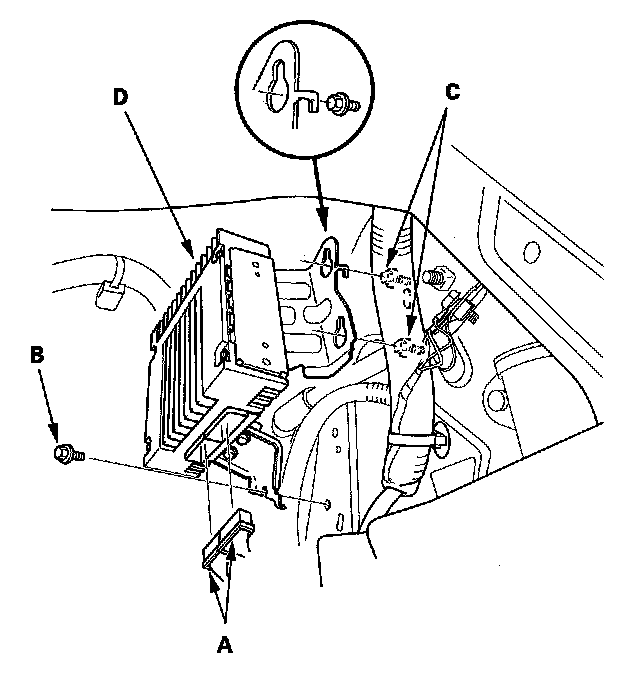

2. Disconnect the connectors (A).






3. Remove the bolt (B) and loosen the bolts (C) securing the stereo amplifier (D).
4. Lower the stereo amplifier through the footwell area.
5. Install the stereo amplifier in the reverse order of removal.
