Antenna Amplifier: Service and Repair

AM/FM Antenna Amplifier Replacement

1. Remove the C-pillar trim.

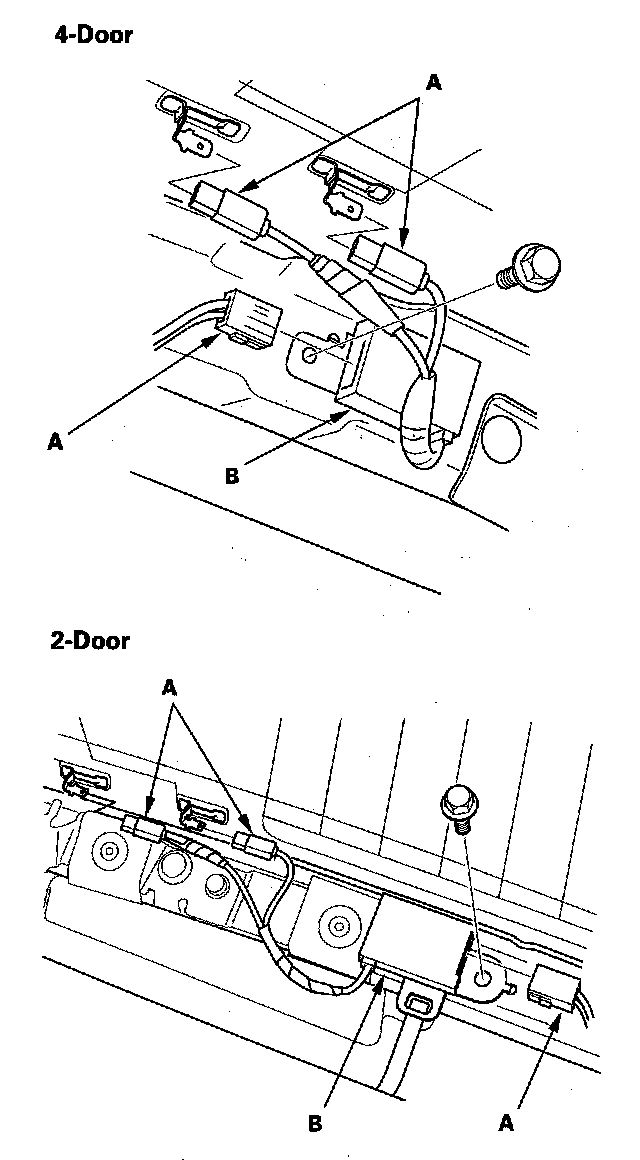

2. Disconnect the connectors (A) from the AM/FM antenna amplifier (B).






3. Remove the bolt and the AM/FM antenna amplifier.
4. Install the unit in the reverse order of removal.
