Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda
>>
2007
>>
Civic Si L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment Systems
>>
System Diagram
System Diagram

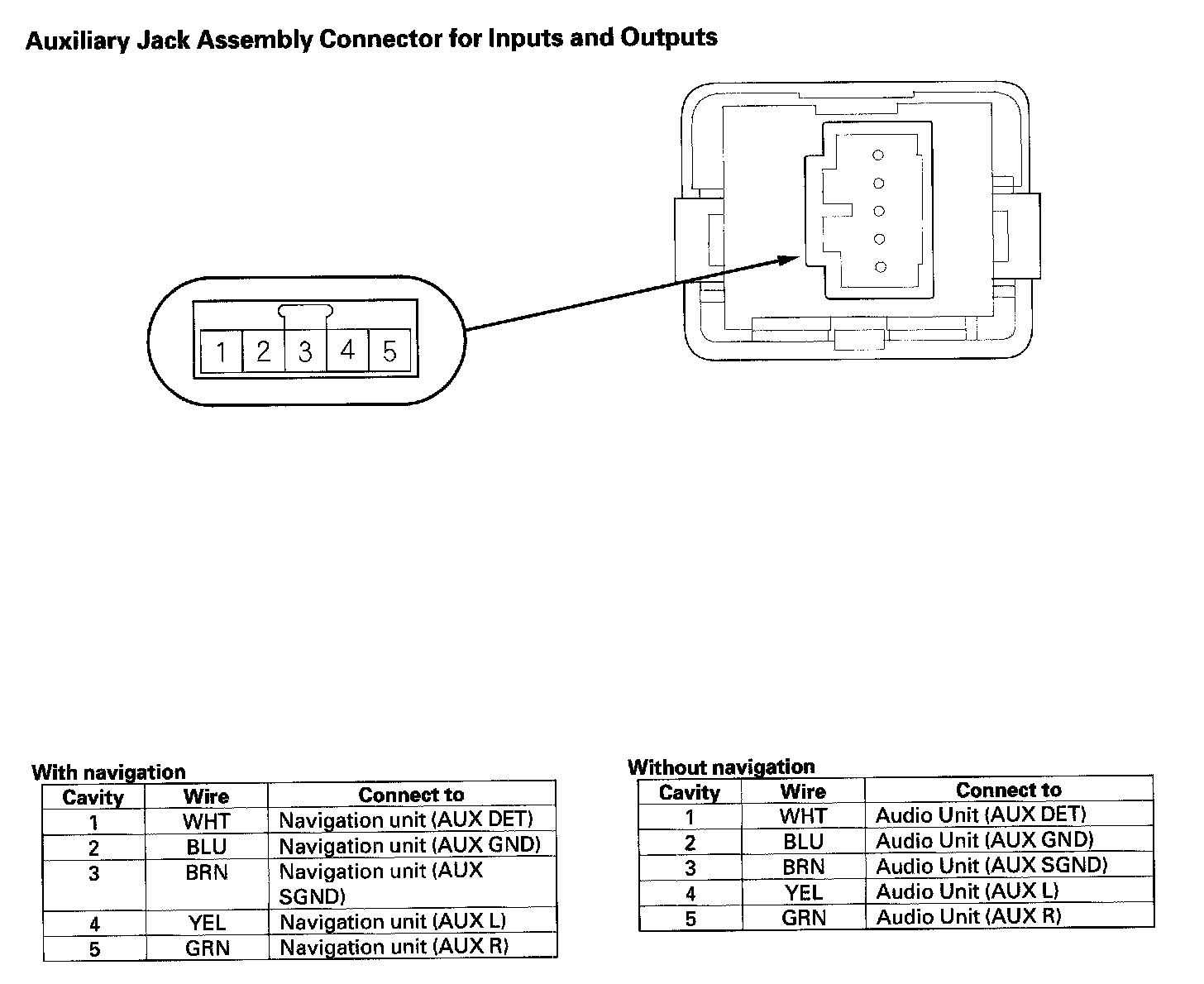

Auxiliary Jack Assembly Connector For Inputs And Outputs:
