Home
>>
Honda
>>
2007
>>
Civic L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Navigation System
>>

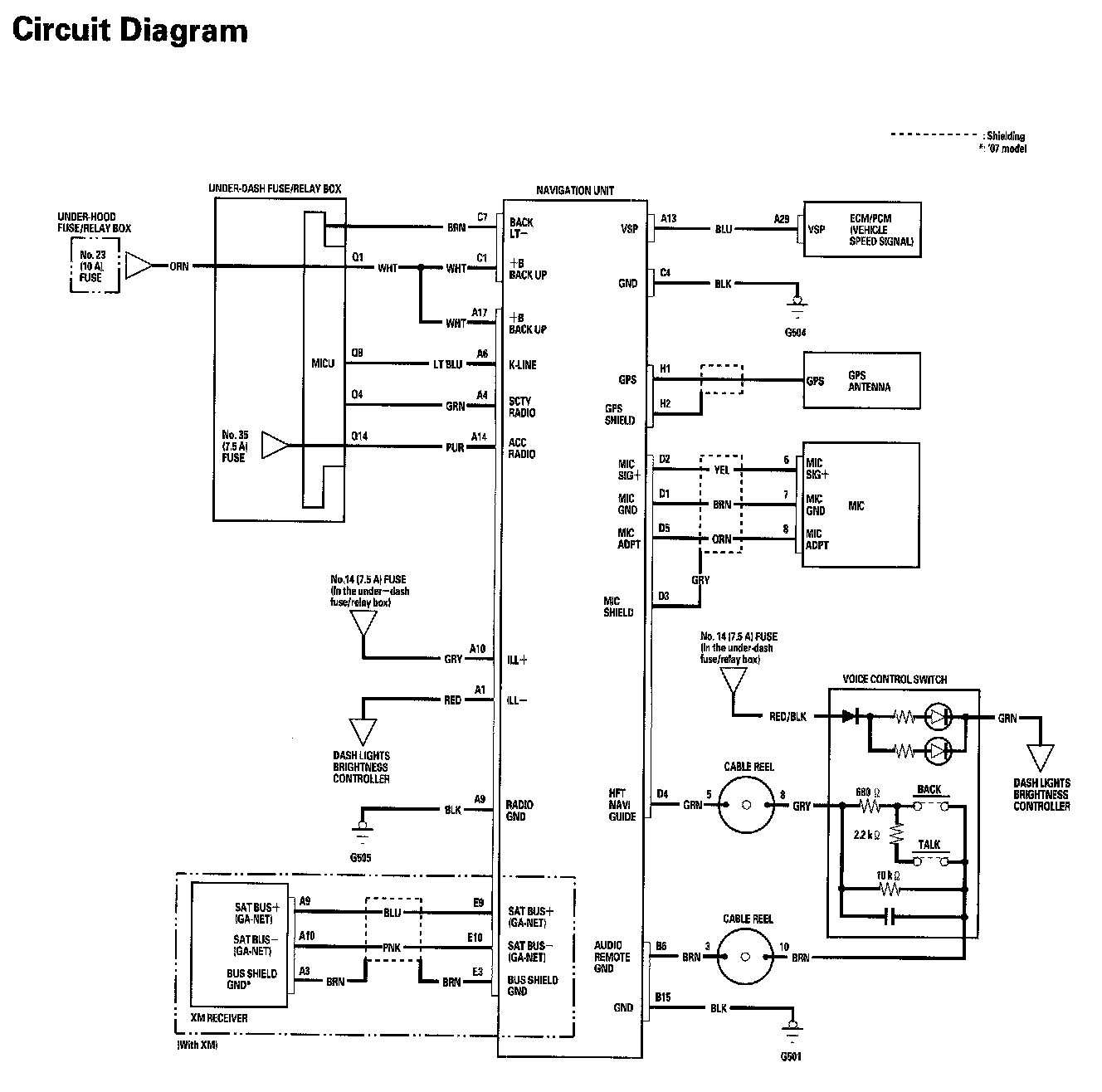

Navigation System Circuit Diagram
Navigation System Circuit Diagram
Navigation System Circuit Diagram:
