Transmission Position Sensor/Switch, CVT
Transmission Position Sensor/Switch, CVT

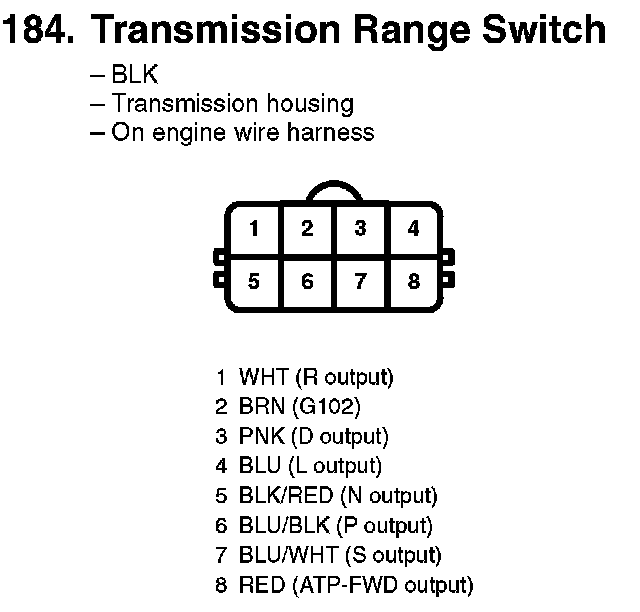

184. Transmission Range Switch:
