View 226-249: 242

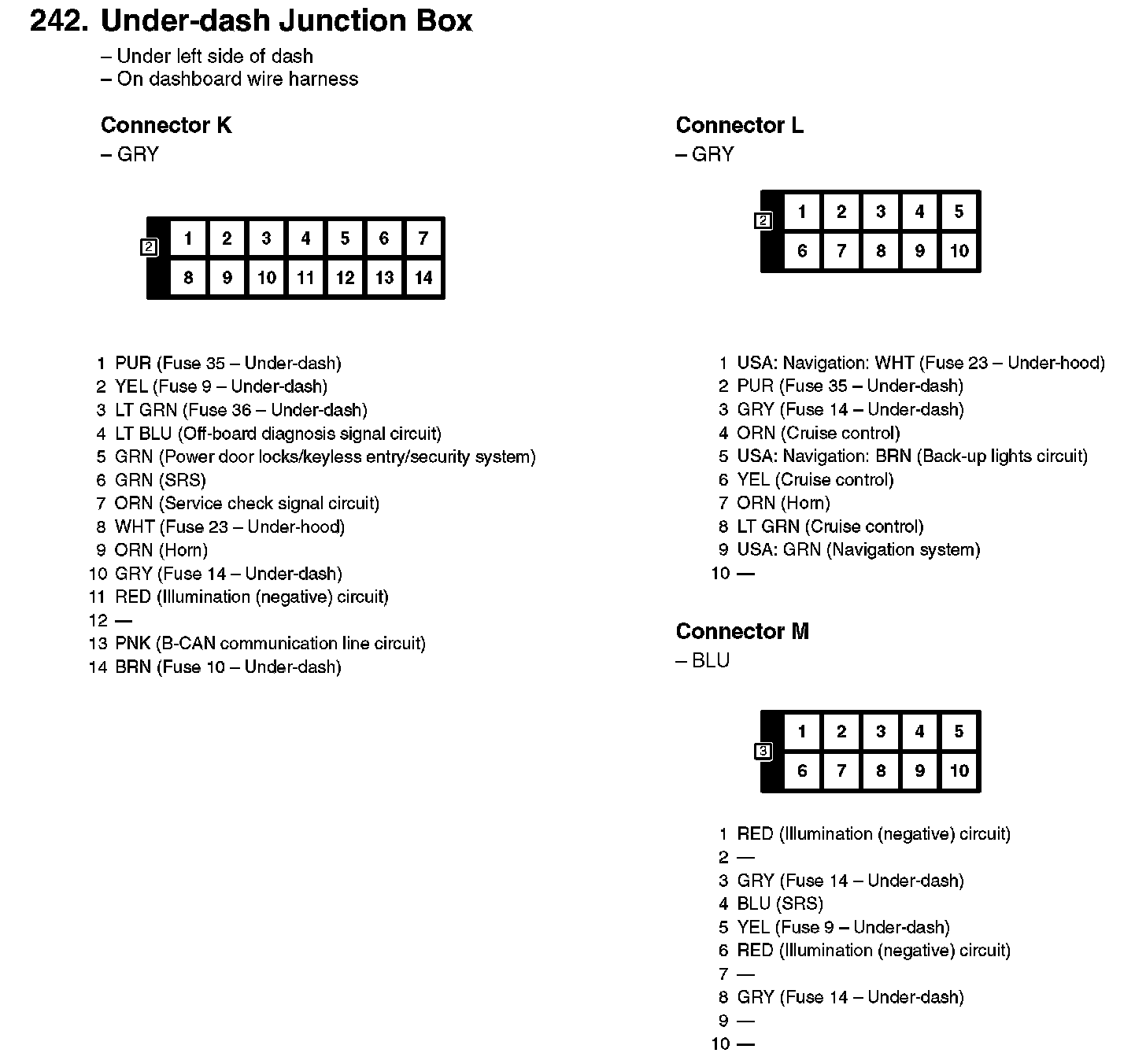

242. Under-dash Junction Box:

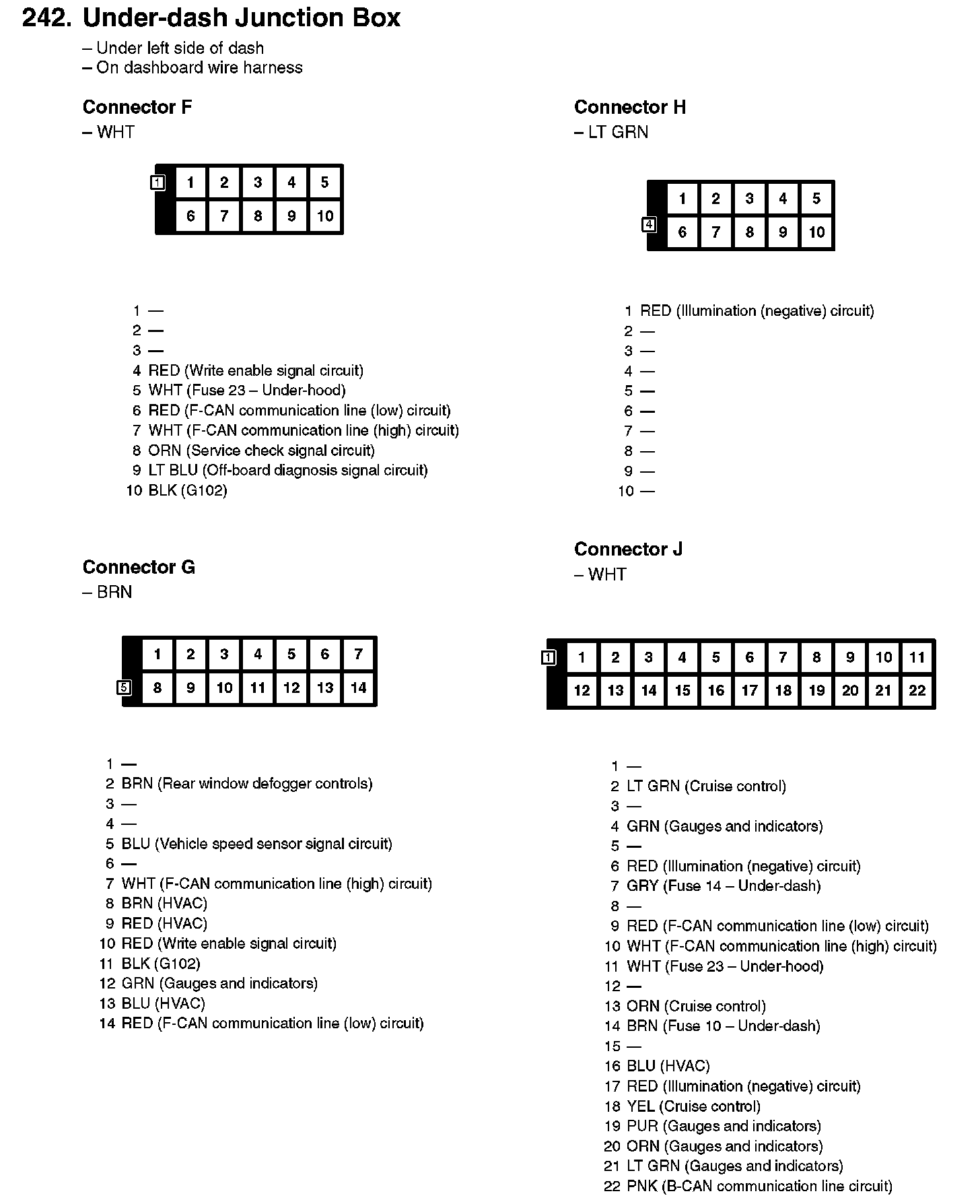

242. Under-dash Junction Box:

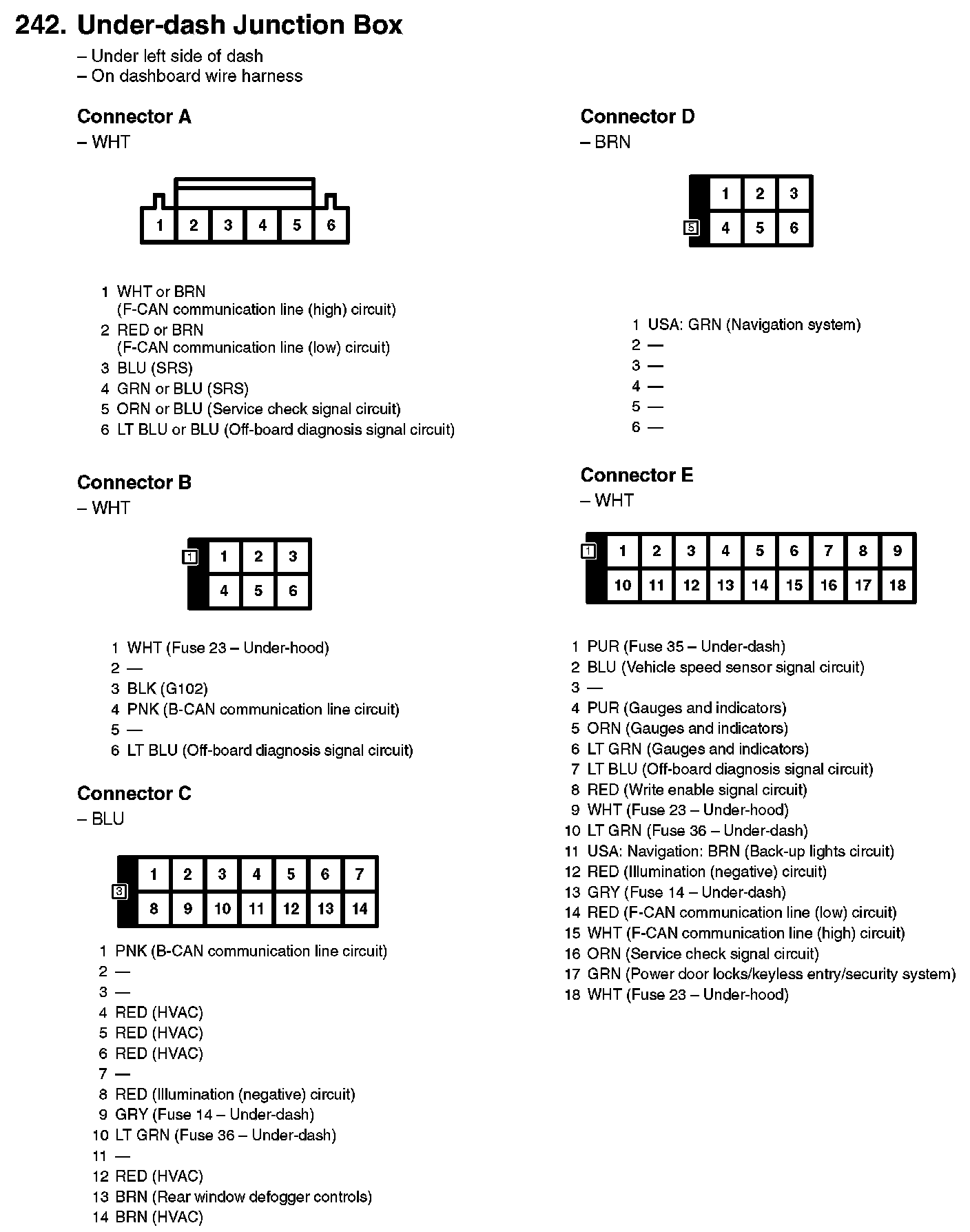

242. Under-dash Junction Box:
