Home >> Honda >> 2007 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 226-249 >> 227

View 226-249: 227

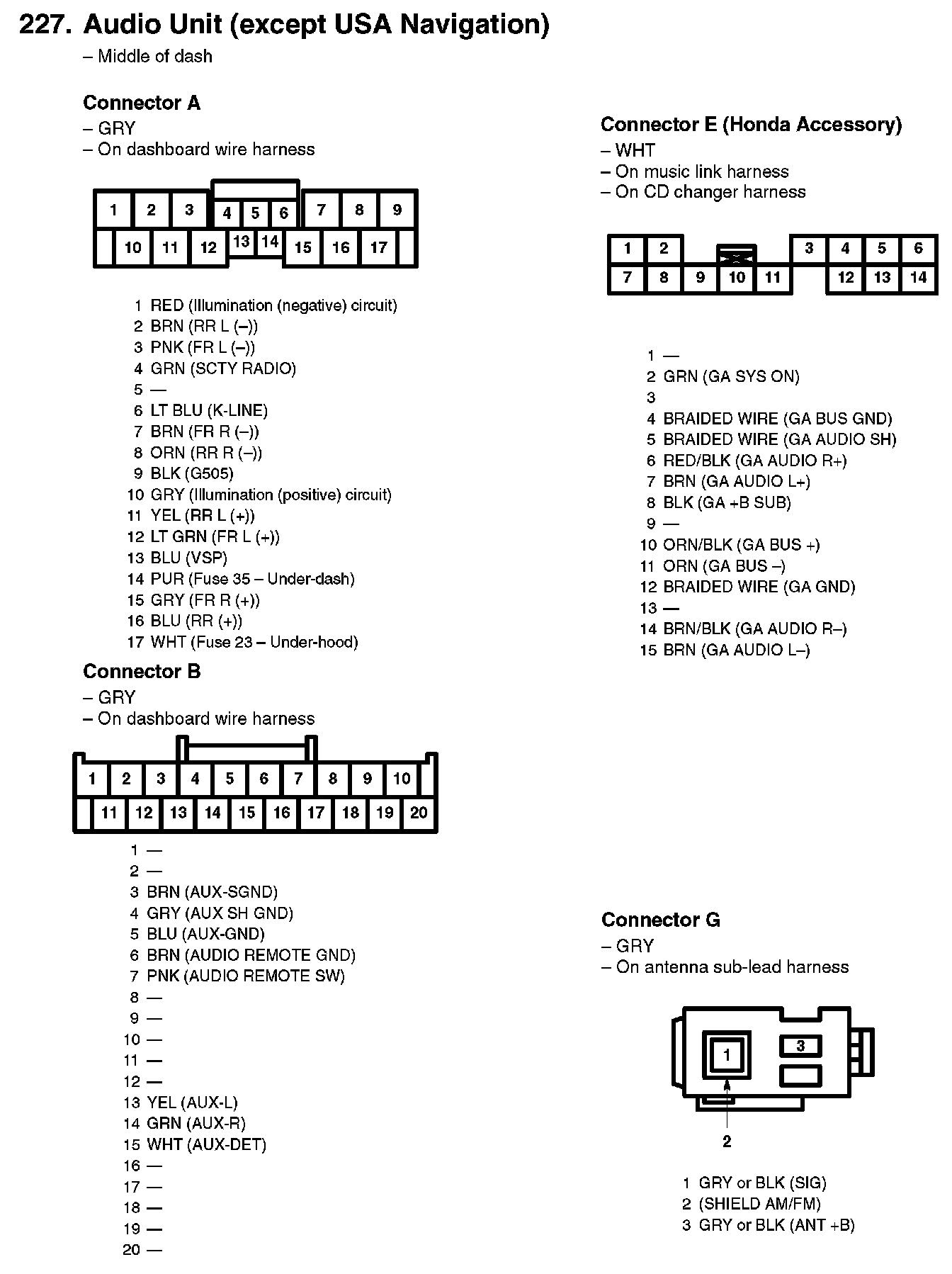

227. Audio Unit (except USA Navigation):
