Compressor HVAC

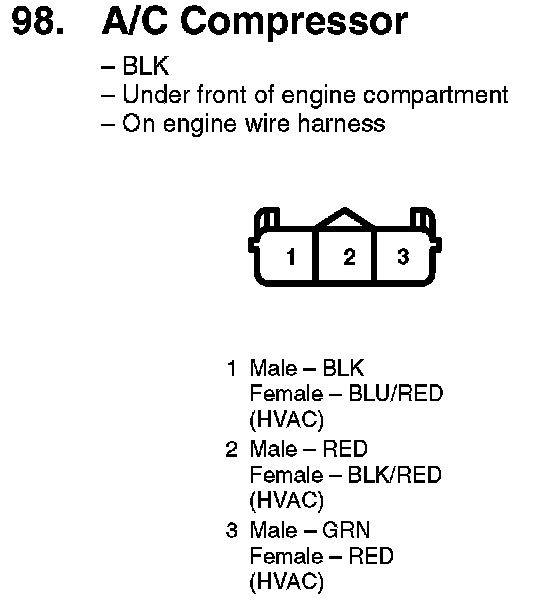

98. A/C Compressor:

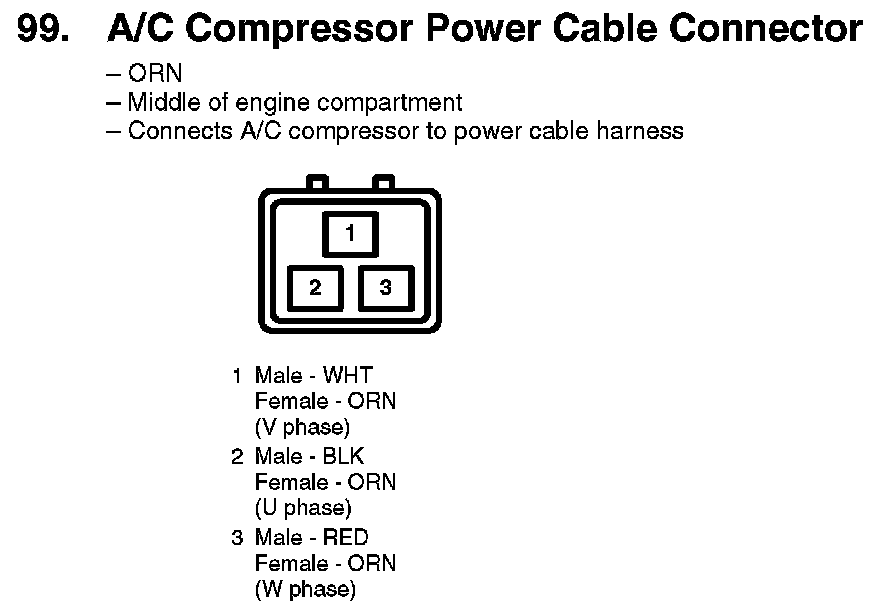

99. A/C Compressor Power Cable Connector:

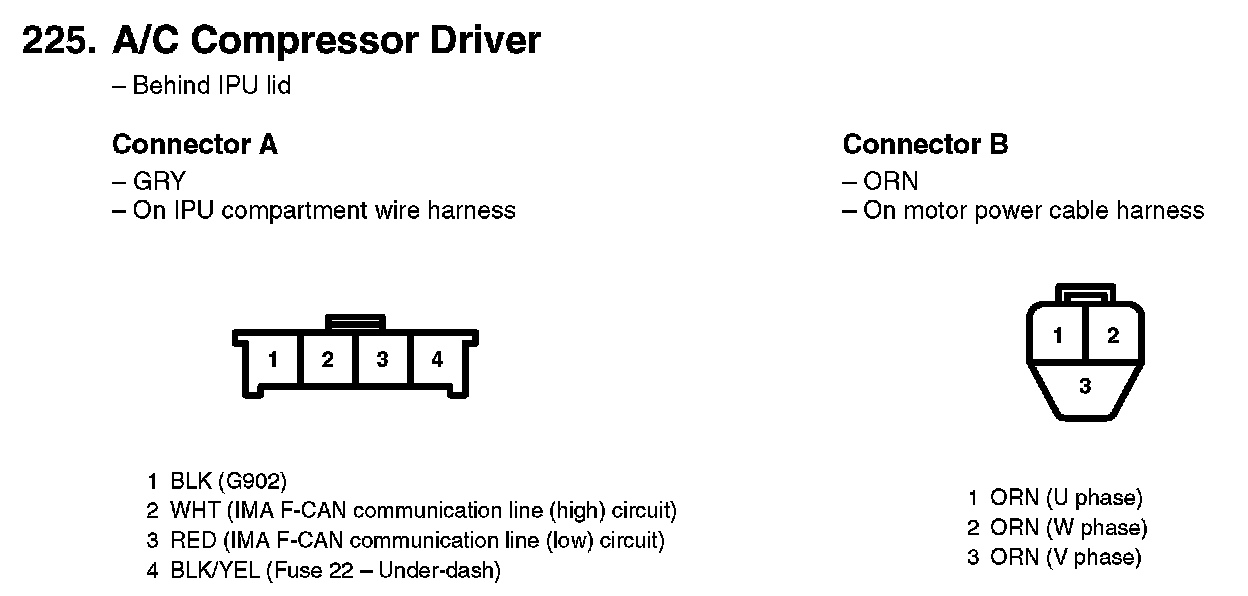

225. A/C Compressor Driver:
