Auxiliary Input / Output Jack, Entertainment System
Auxiliary Input / Output Jack, Entertainment System

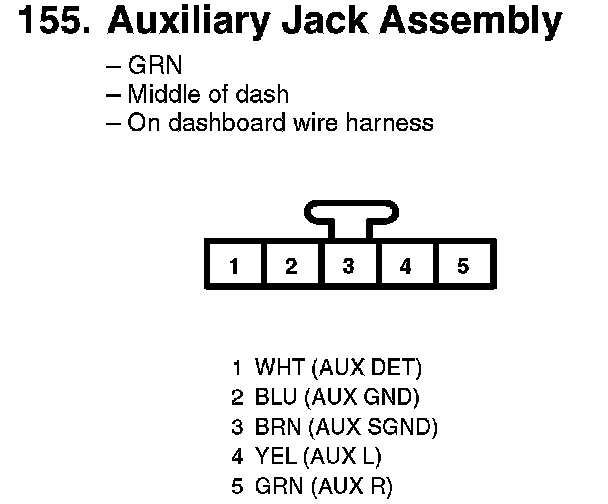

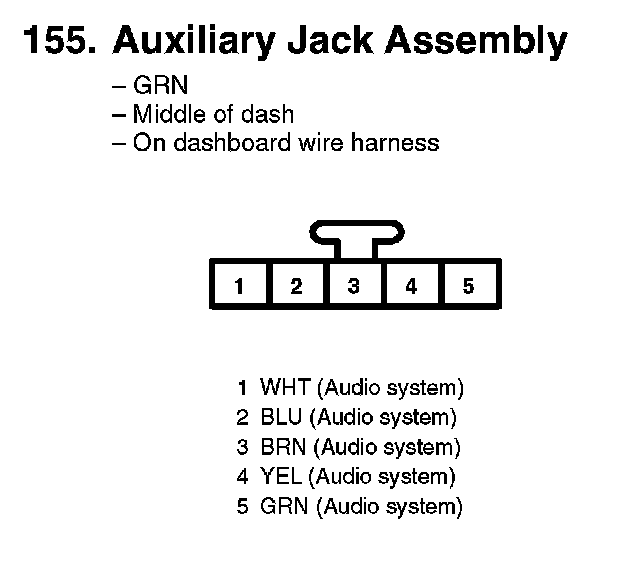

155. Auxiliary Jack Assembly:
155. Auxiliary Jack Assembly:
