Home
>>
Honda
>>
2007
>>
Civic L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Flow Meter/Sensor
Air Flow Meter/Sensor

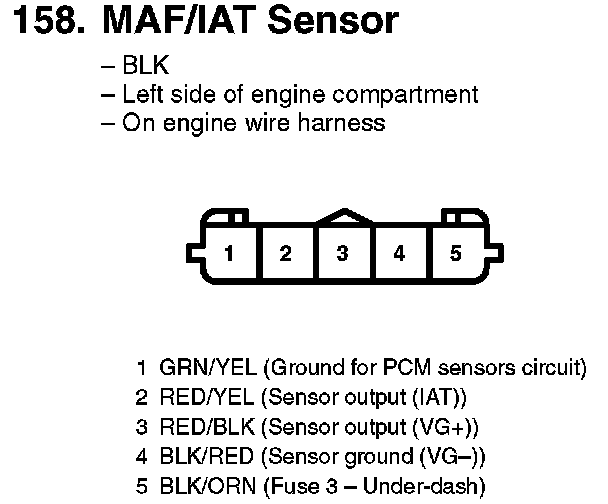

158. MAF/IAT Sensor:
