Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda
>>
2007
>>
Civic L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module

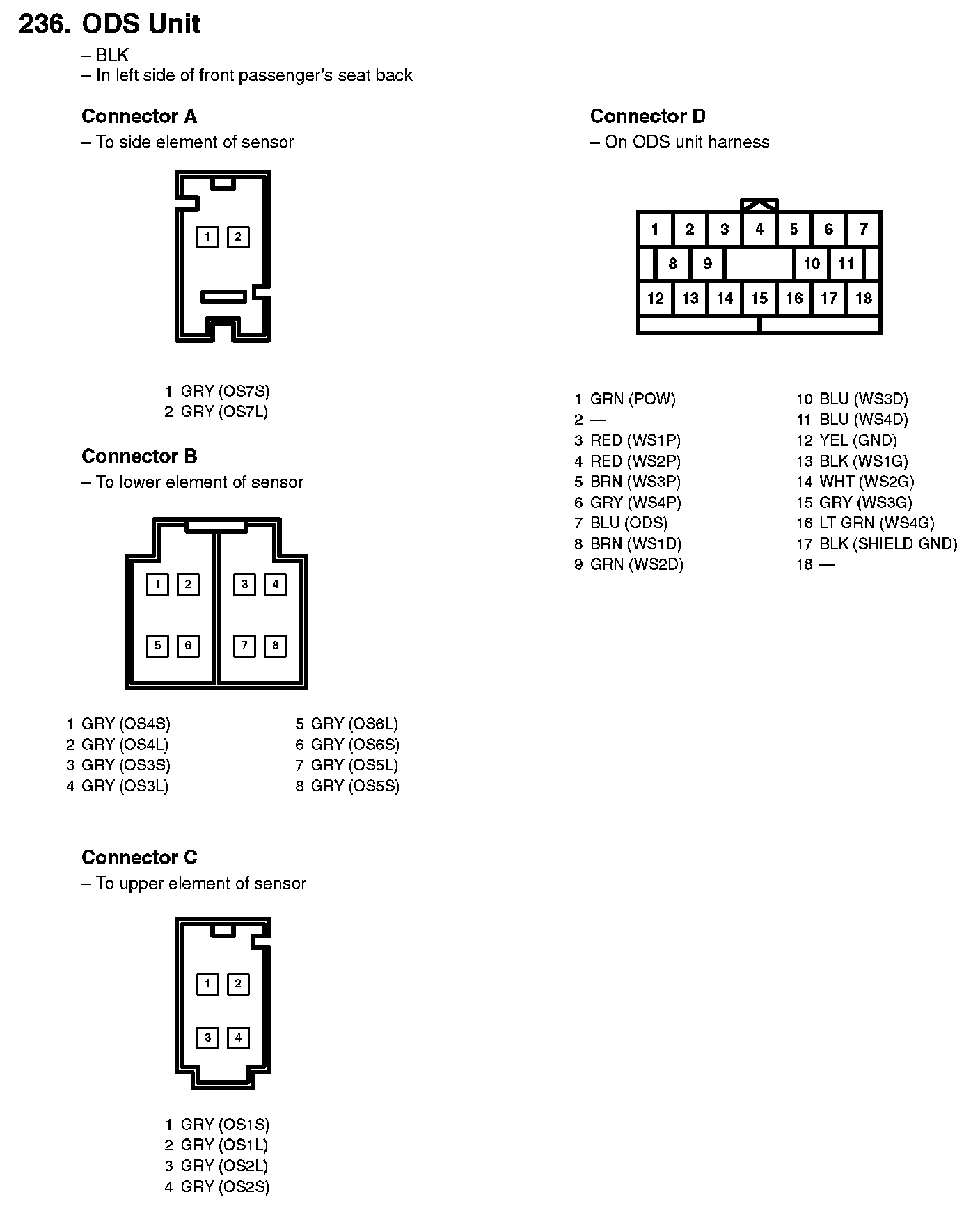

236. ODS Unit:

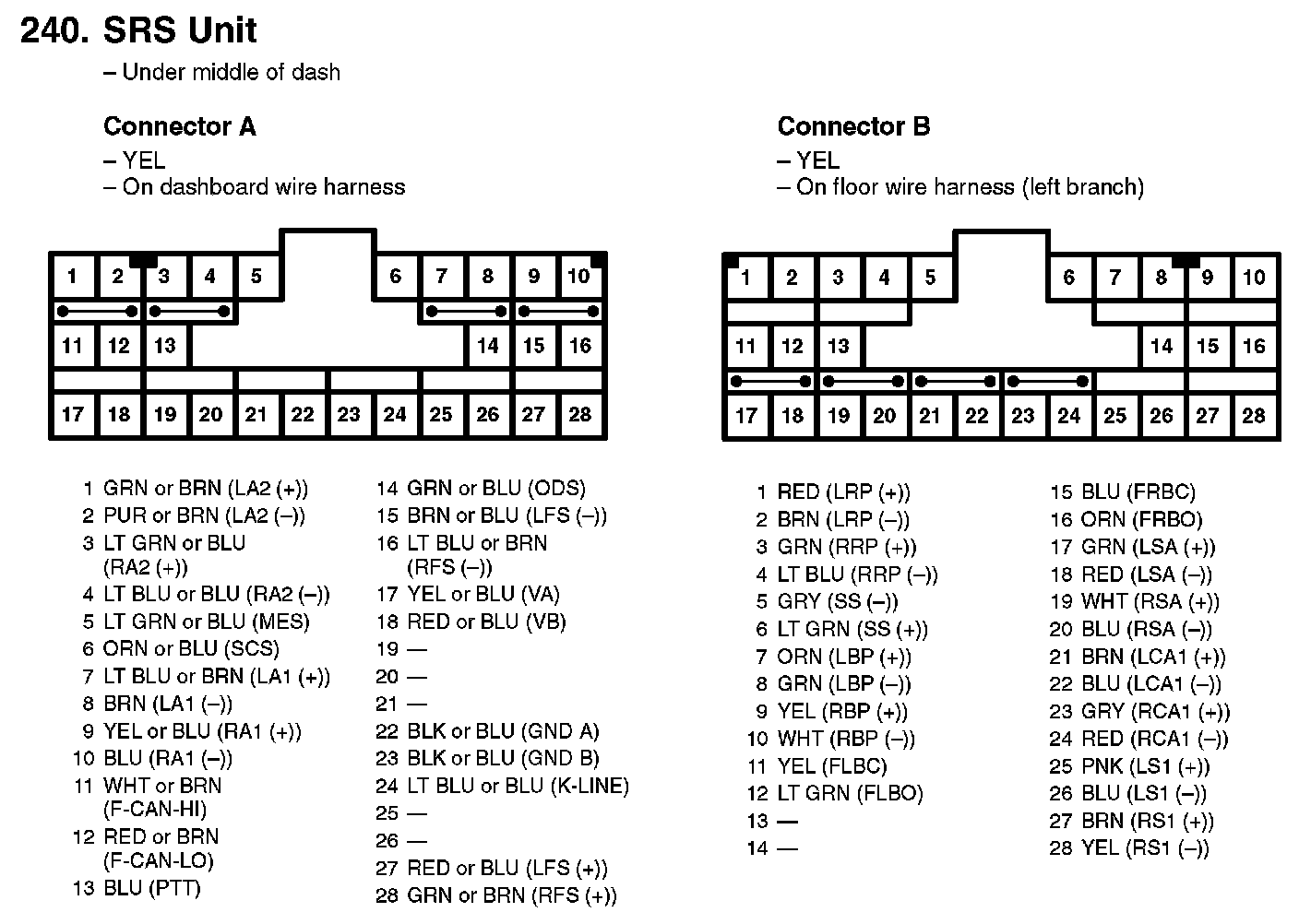

240. SRS Unit:

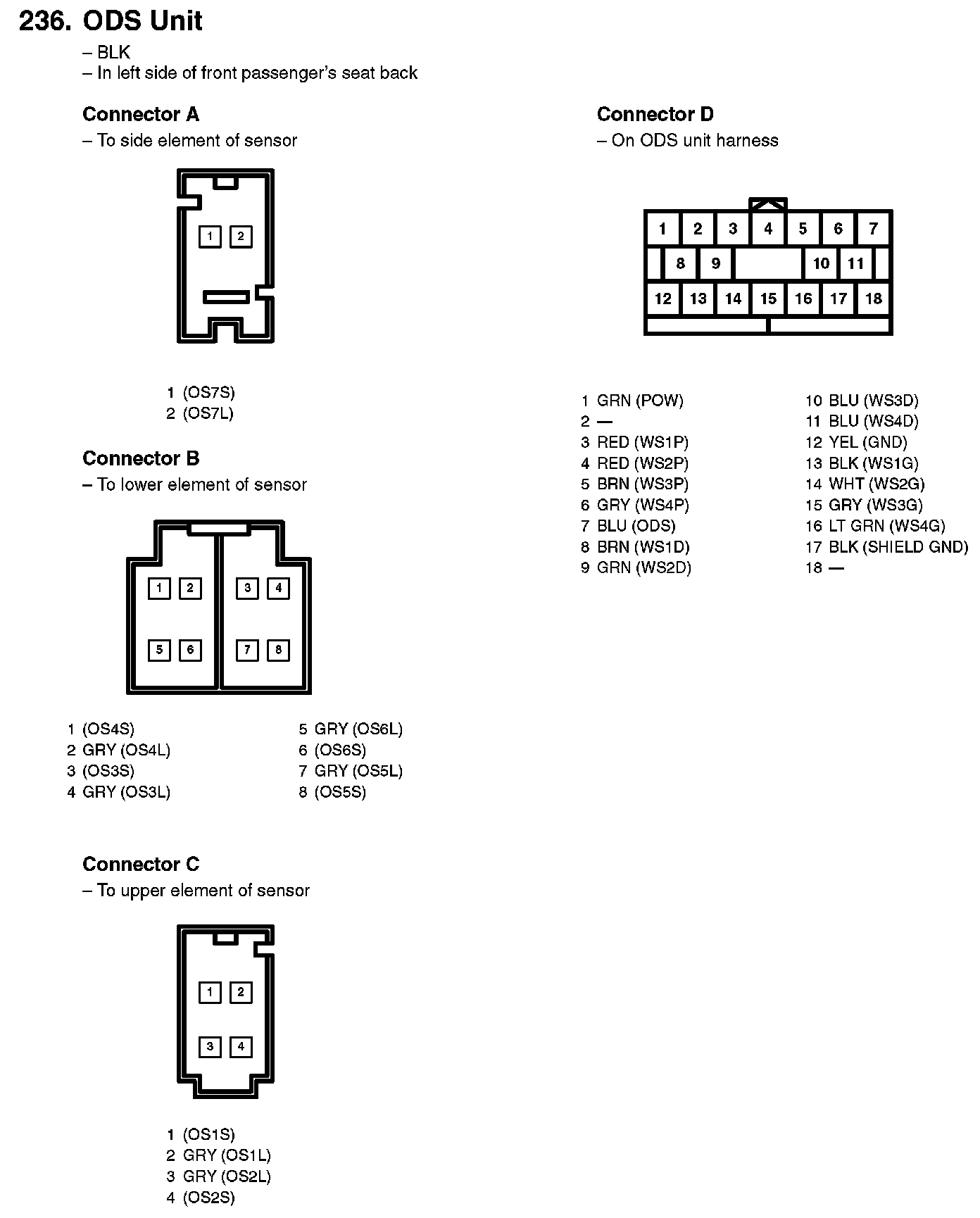

236. ODS Unit:

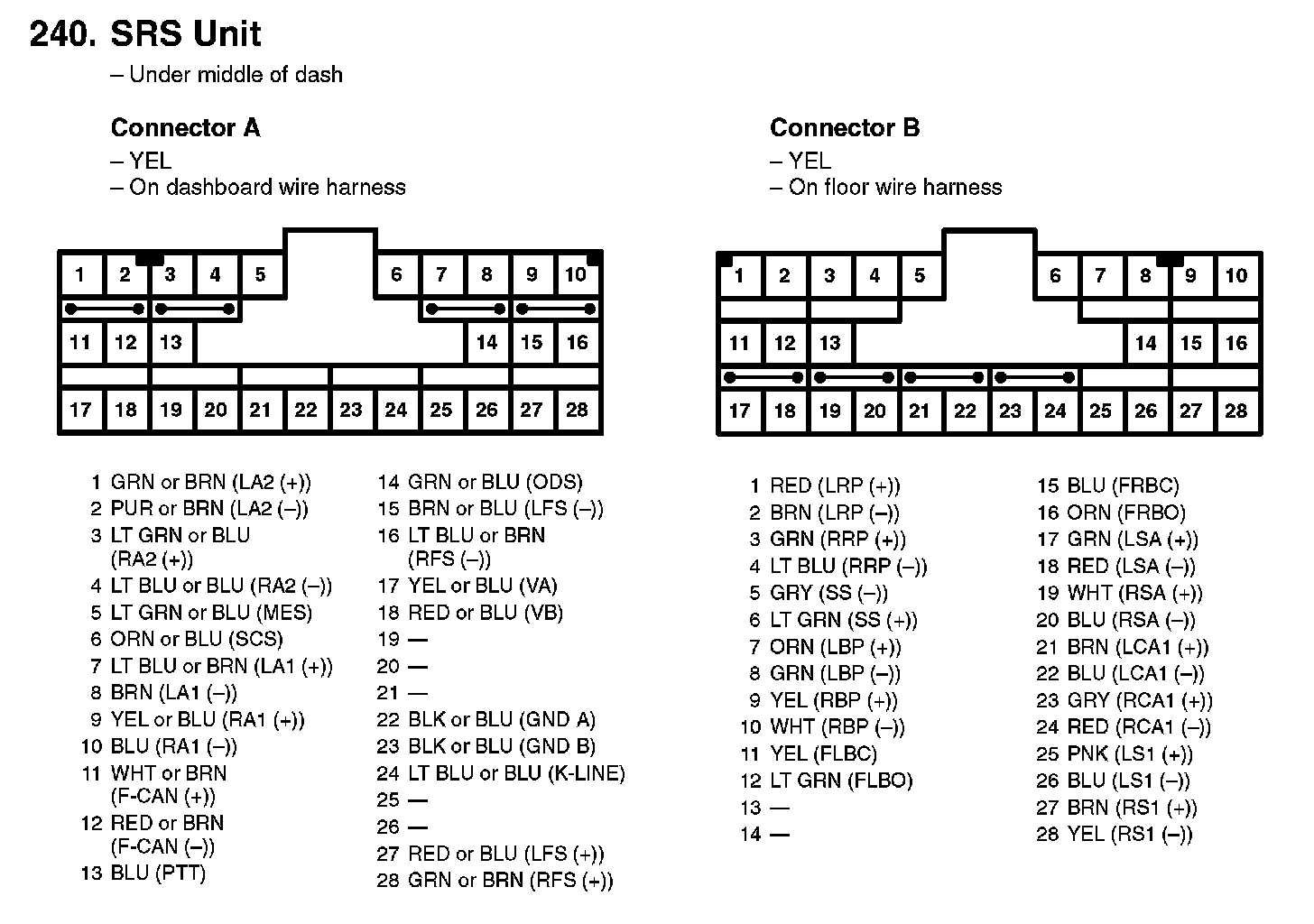

240. SRS Unit:
