Rear Suspension

Stabilizer Bar Replacement
1. Raise the rear of the vehicle, and support it with safety stands in the proper locations.
2. Remove the rear wheels.

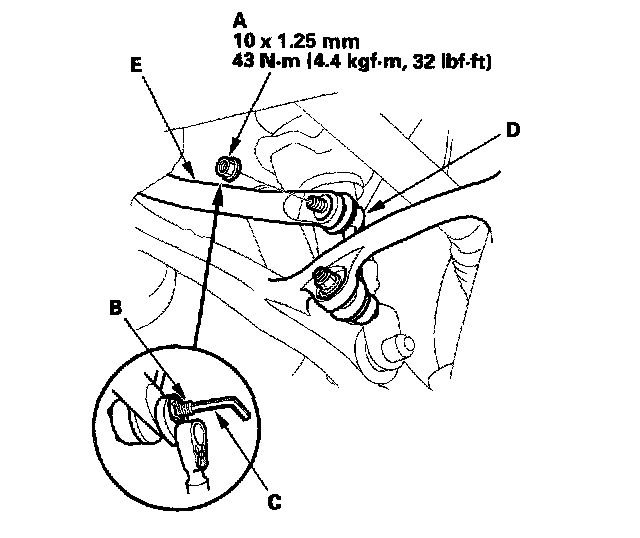

3. Remove the self-locking nuts (A) while holding the joint pins (B) with a hex wrench (C), and disconnect both stabilizer links (D) from the stabilizer bar (E).

NOTE: During installation, install a new self-locking nut.

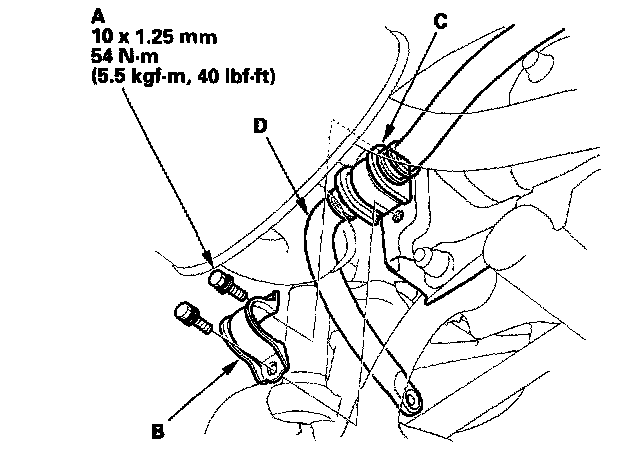

4. Remove the bolts (A) and bushing holders (B), then remove the bushings (C) and the stabilizer bar (D).
5. Install the stabilizer bar in the reverse order of removal.

NOTE: Refer to Stabilizer Link Replacement to connect the stabilizer bar to the links.
