Fuel Pressure Pulsation Damper: Service and Repair

Fuel Pulsation Damper Replacement

1. Remove the fuel rail.

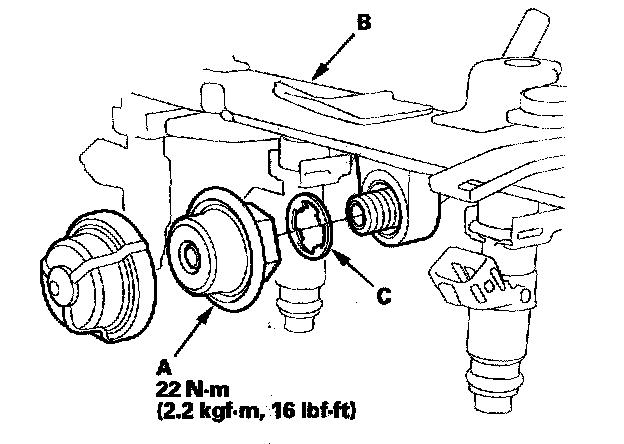

2. Remove the fuel pulsation damper (A) from the fuel rail (B).
3. Install the fuel pulsation damper in the reverse order of removal with new washers (C).
