Canister Vent Valve: Service and Repair

EVAP Canister Vent Shut Valve Replacement

1. Remove the EVAP canister.

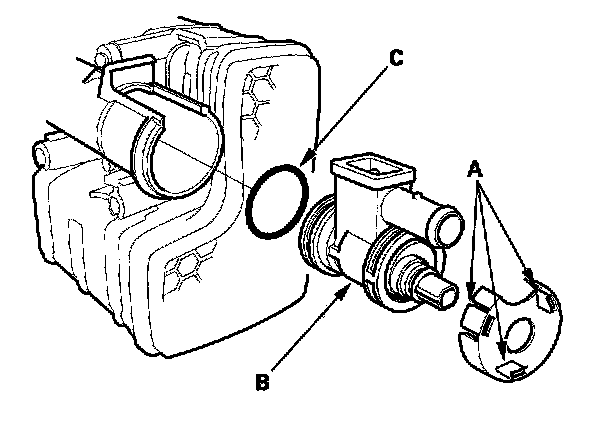

2. Pry the lock tabs (A) outward, and remove the EVAP canister vent shut valve (B).

NOTE: Be careful not to damage the lock tabs.

3. Install the valve in the reverse order of removal with a new O-ring (C).

NOTE: Do not coat the O-ring with oil, etc.
