Home >> Honda >> 2006 >> S2000 L4-2.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Splice and Junction Connector Details Index >> Vehicle Speed Sensor Signal 2

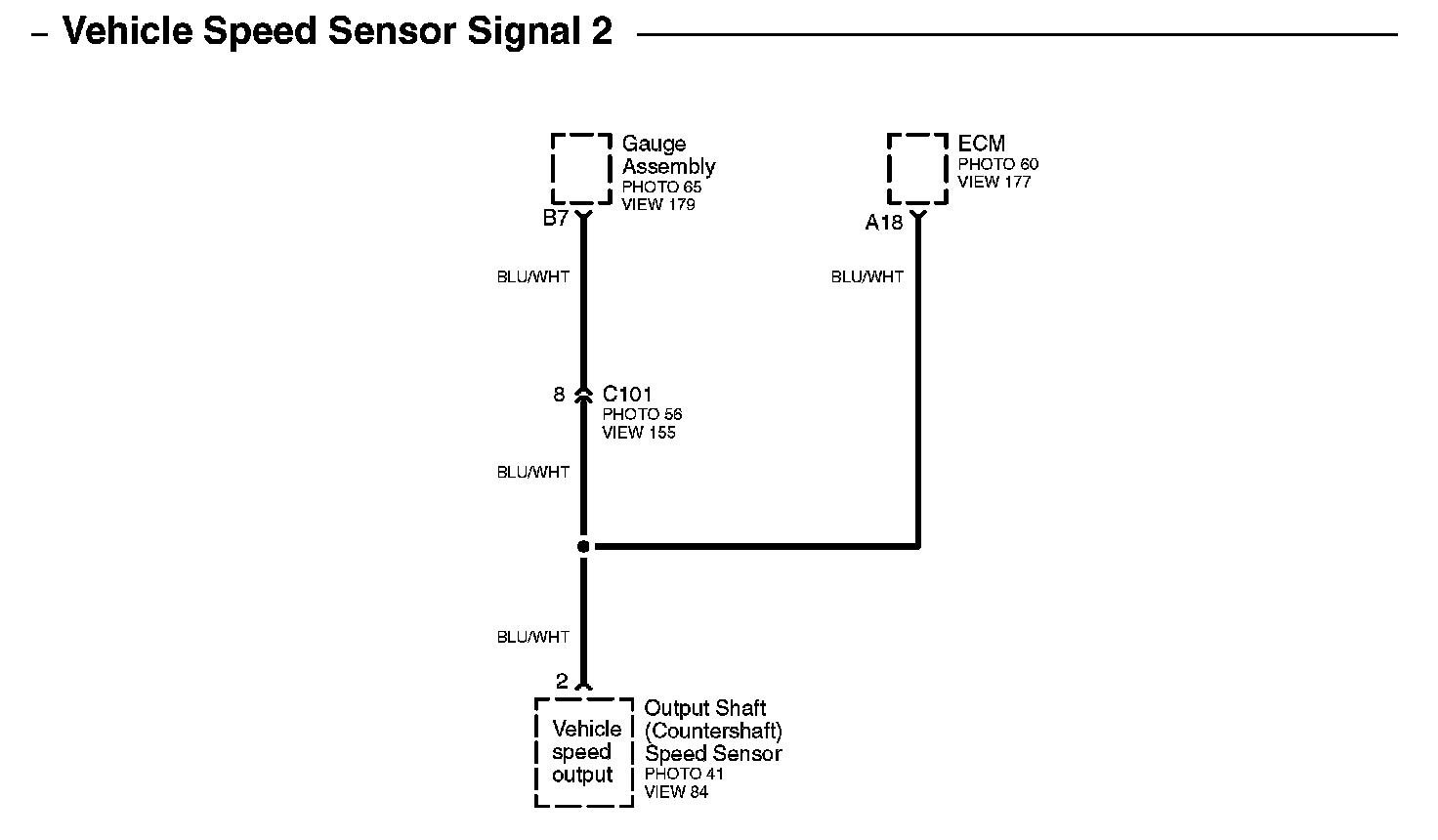

Vehicle Speed Sensor Signal 2

Vehicle Speed Sensor Signal 2:
