Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda
>>
2006
>>
S2000 L4-2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Splice and Junction Connector Details Index
>>

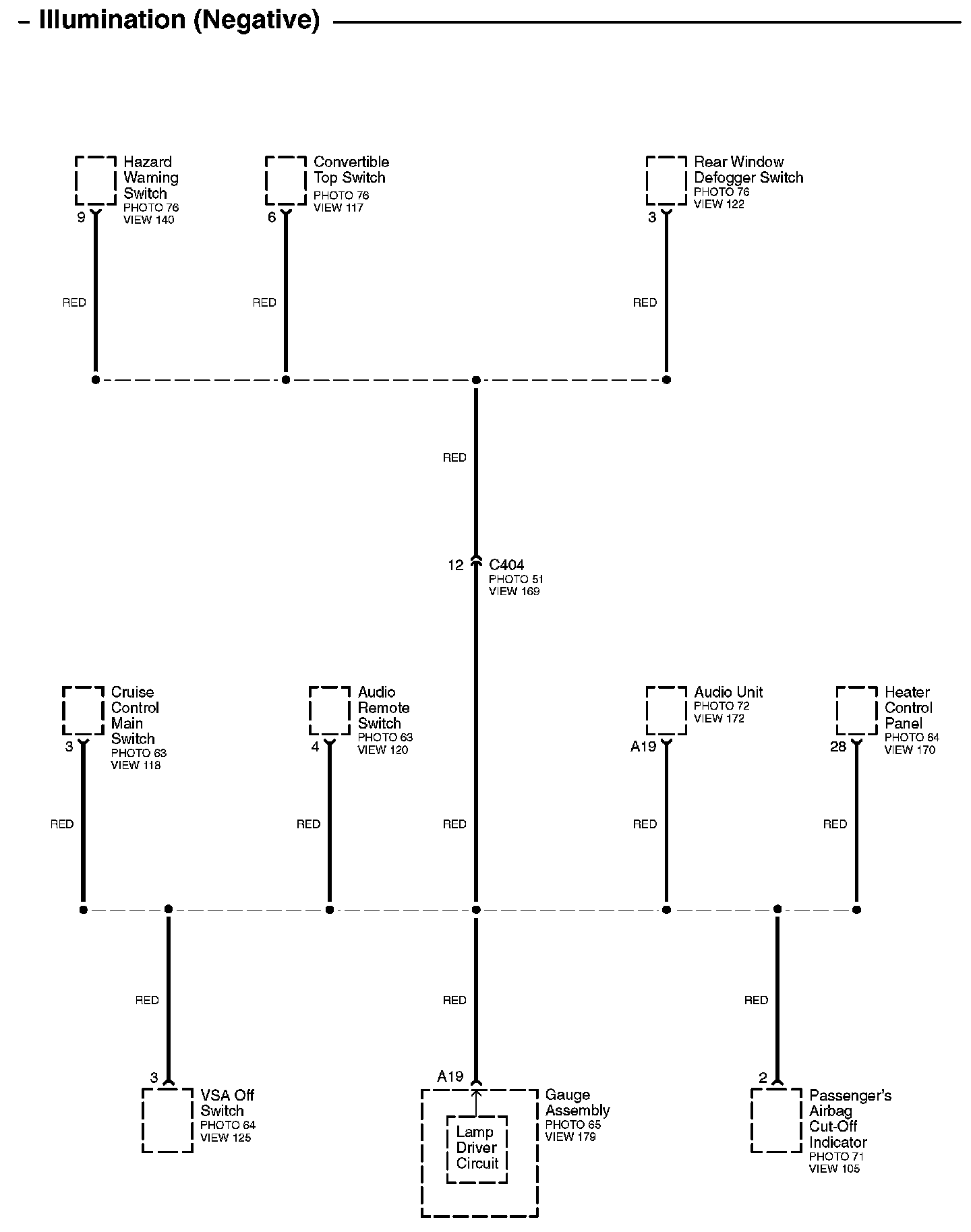

Illumination (Negative)
Illumination (Negative)
Illumination (Negative):
