Home >> Honda >> 2006 >> S2000 L4-2.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Splice and Junction Connector Details Index >> Ground For ECM Sensors (LG3)

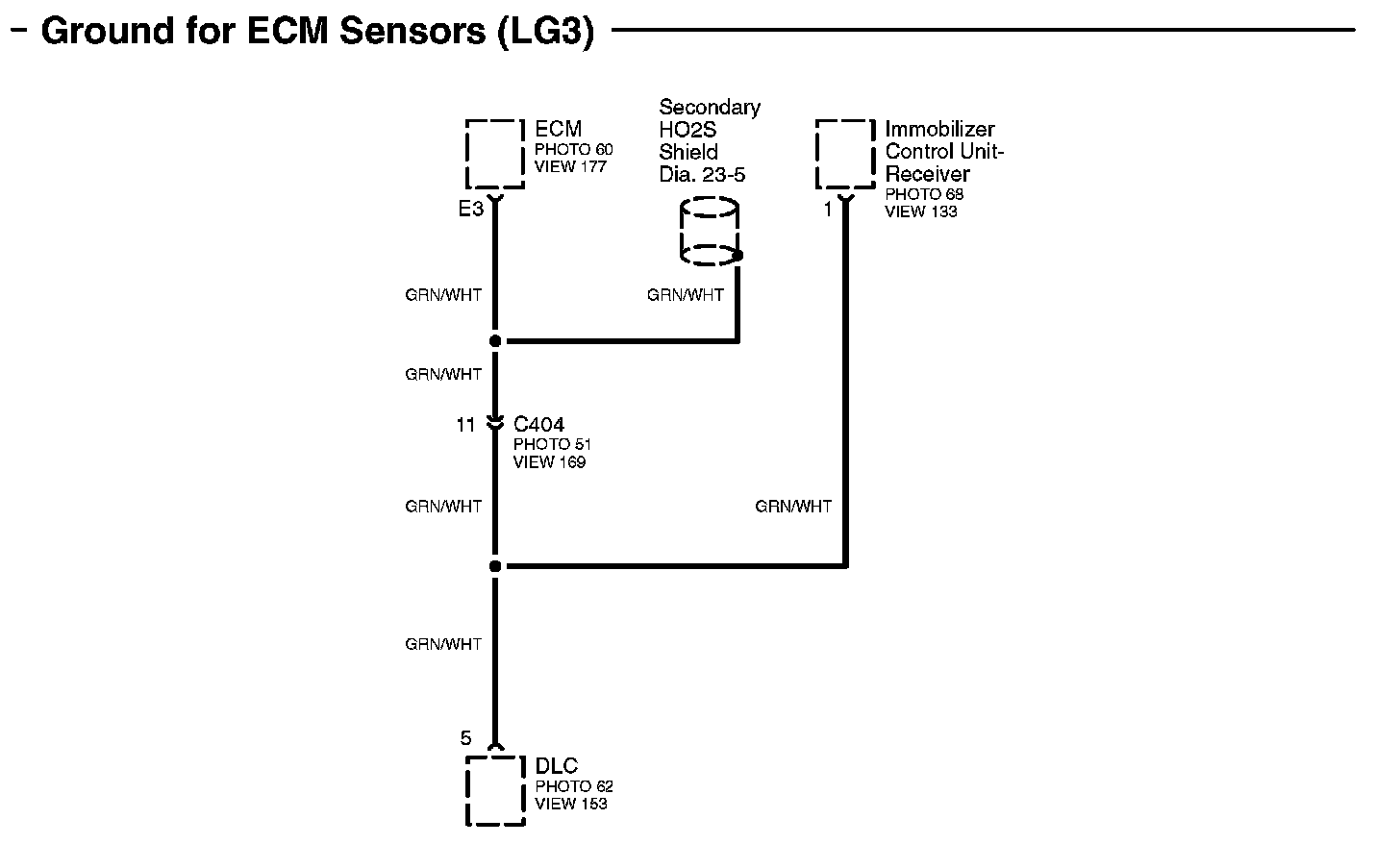

Ground For ECM Sensors (LG3)

Ground For ECM Sensors (LG3):
