Home
>>
Honda
>>
2006
>>
S2000 L4-2.2L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Courtesy Lamp
>>
Diagrams
>>
Electrical Diagrams
>>
Circuit Diagrams
Circuit Diagrams

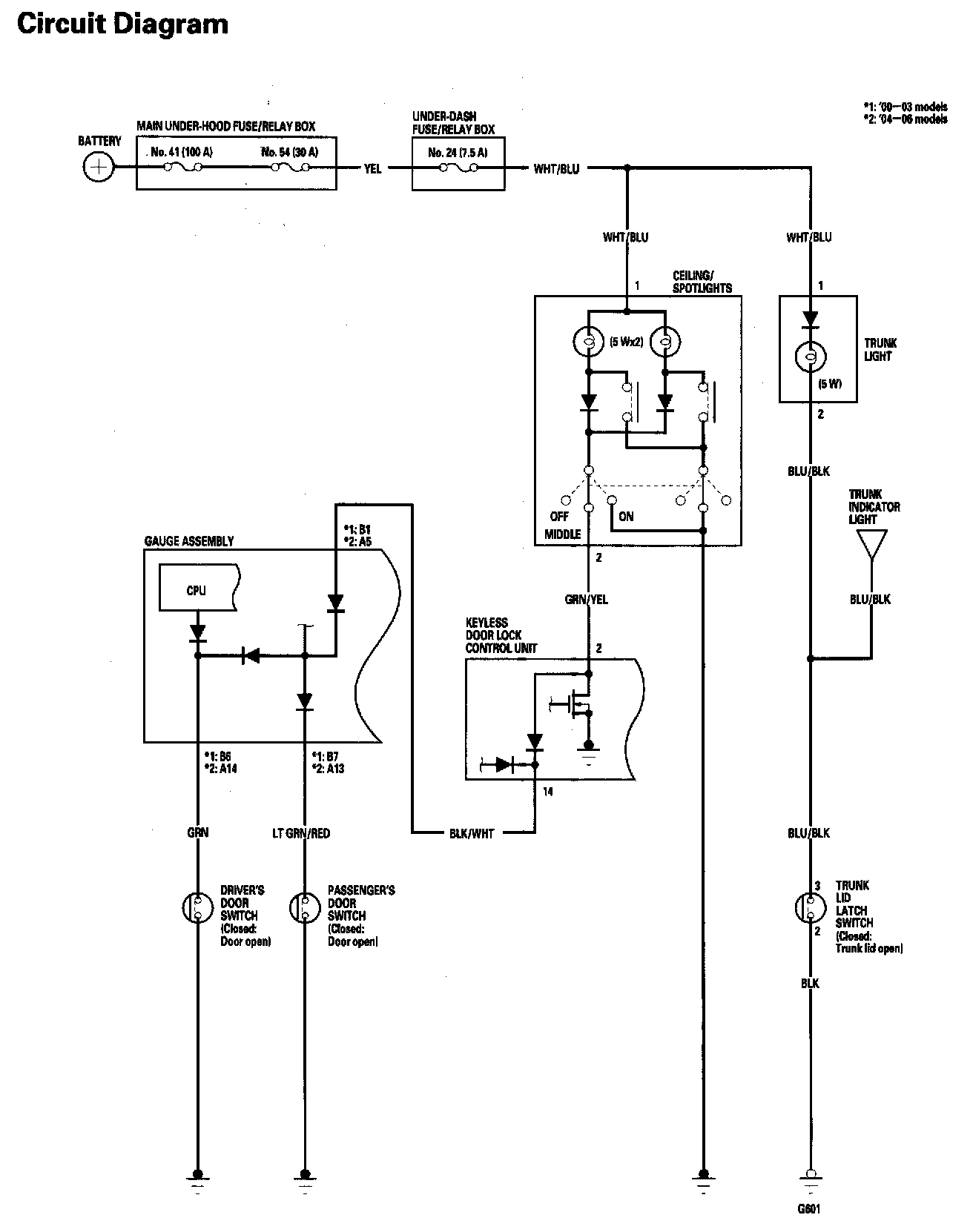

Interior Lights - Circuit Diagram:
