Power and Ground Distribution
>>
System Diagram
>>
Splice and Junction Connector Details Index
>>
Illumination (Positive)
Illumination (Positive)

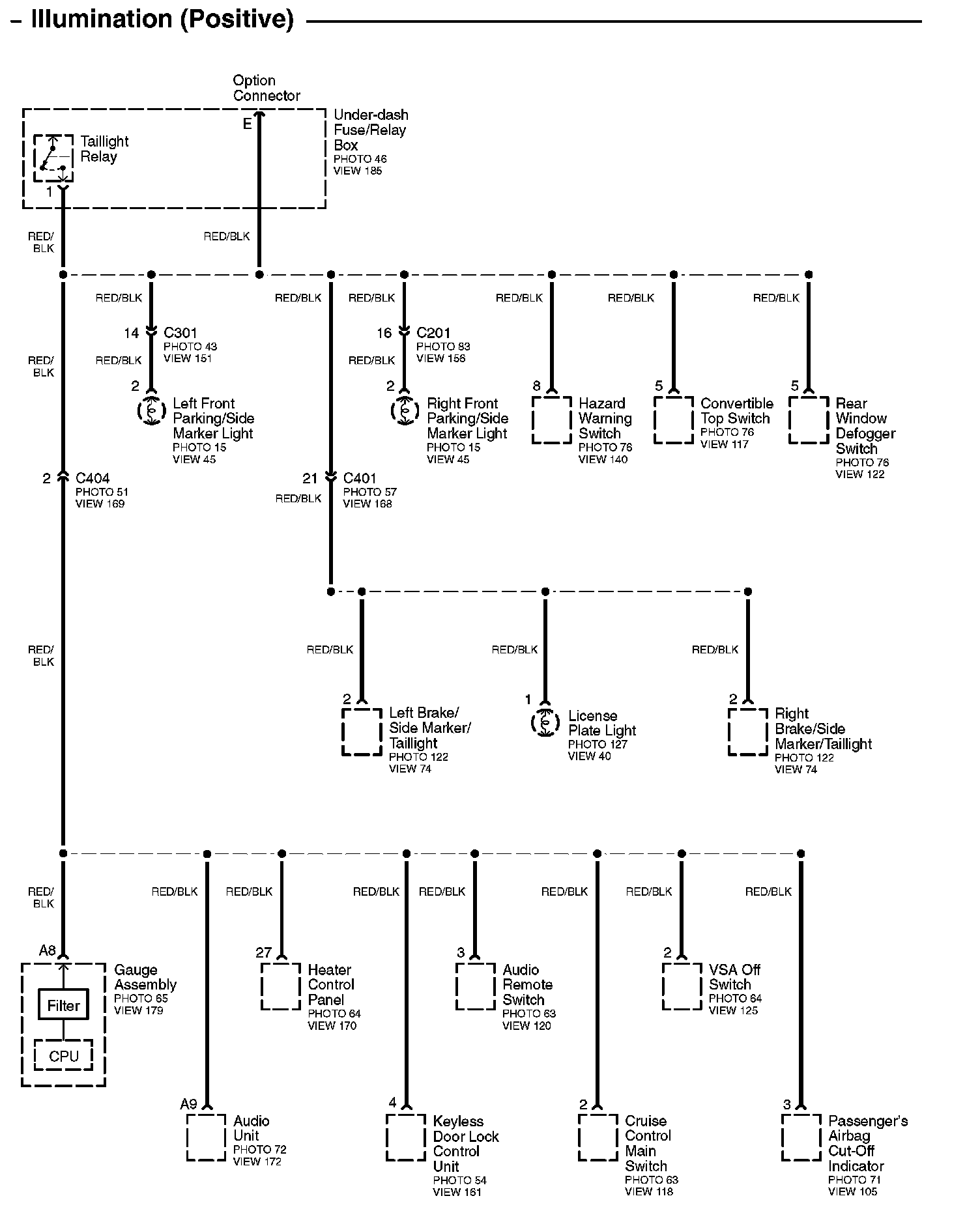

Illumination (Positive):
