Diagram Set 73 (Lights-On, Key-In and Seat Belt Reminders)
Diagram Set 73 (Lights-On, Key-In and Seat Belt Reminders)

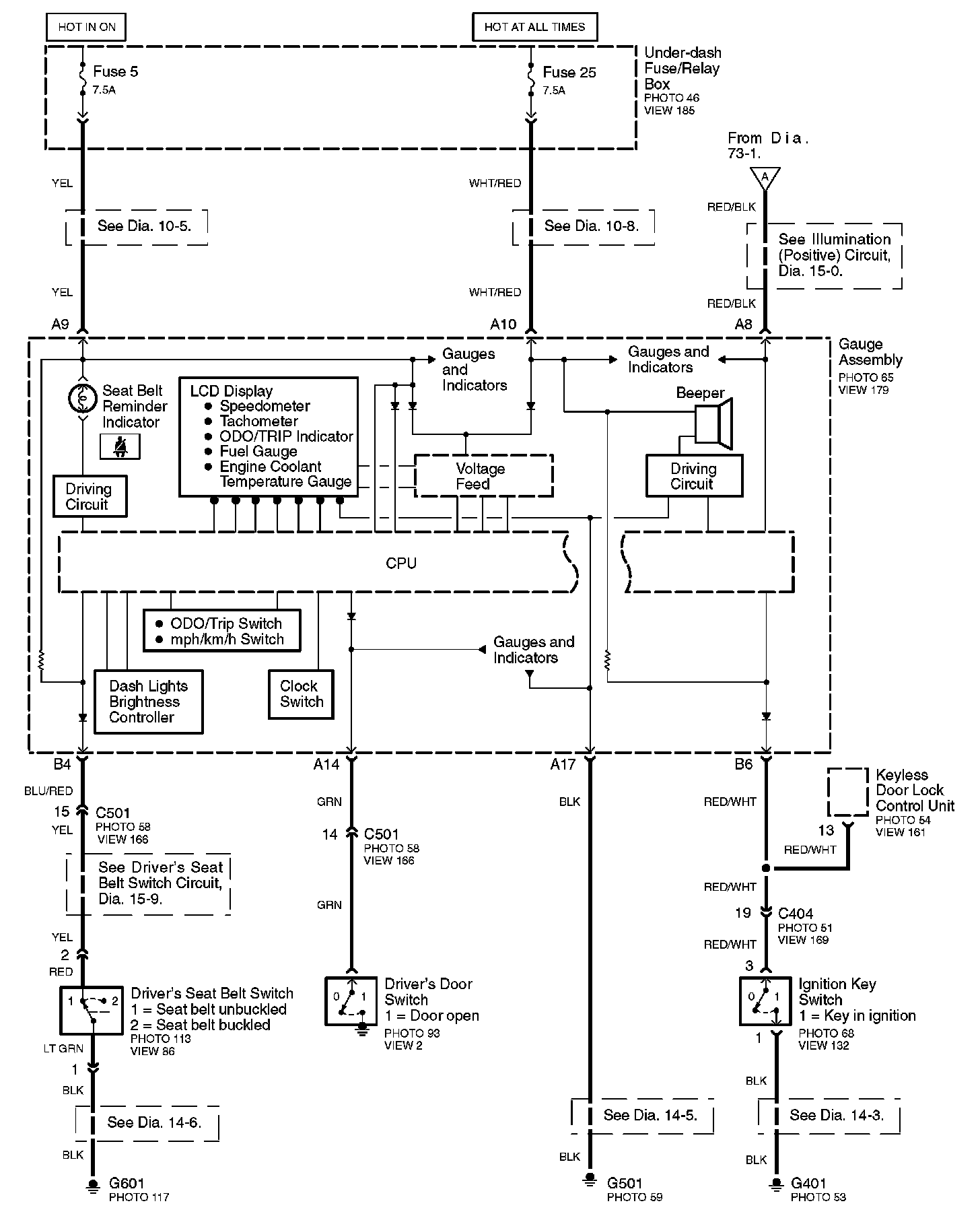

Diagram 73-0:

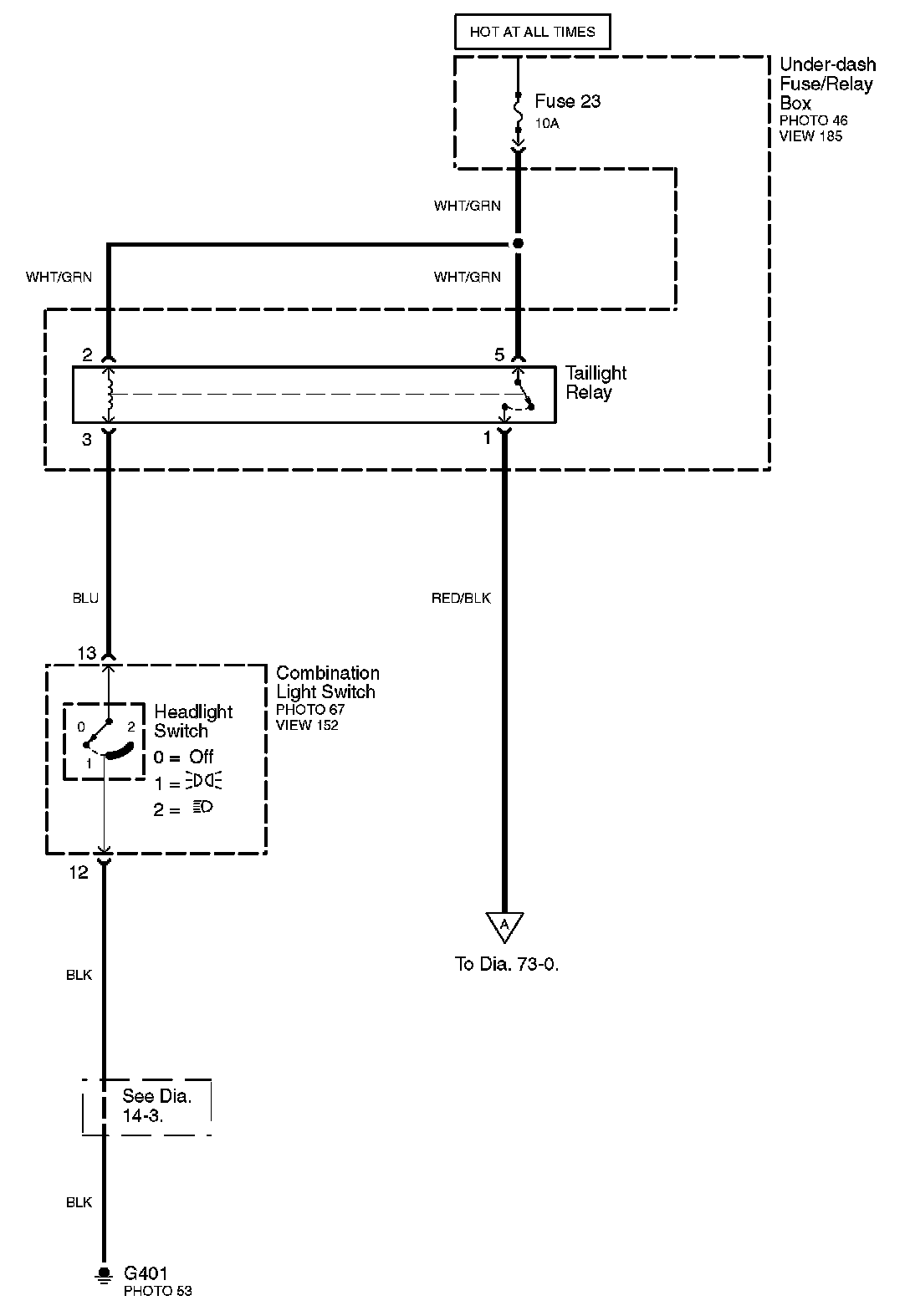

Diagram 73-1:
