Curiosii for ever!: Car repair manuals for everyone.

Home >> Honda >> 2006 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 151-175 >> 159

View 151-175: 159

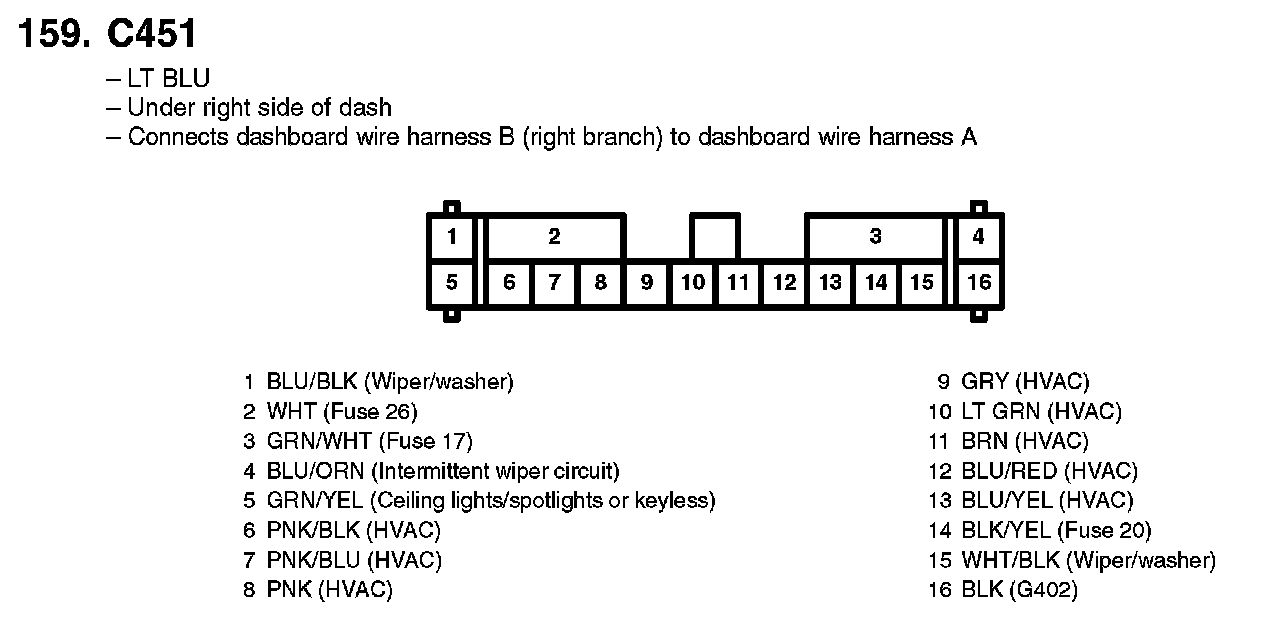

159. C451:
