Home >> Honda >> 2006 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 101-125 >> 120

View 101-125: 120

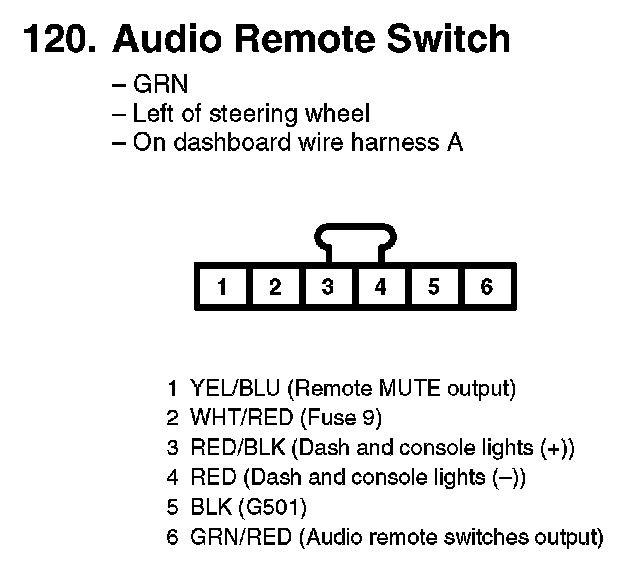

120. Audio Remote Switch:
