Rear Speaker

Rear Speaker Replacement

'06 model

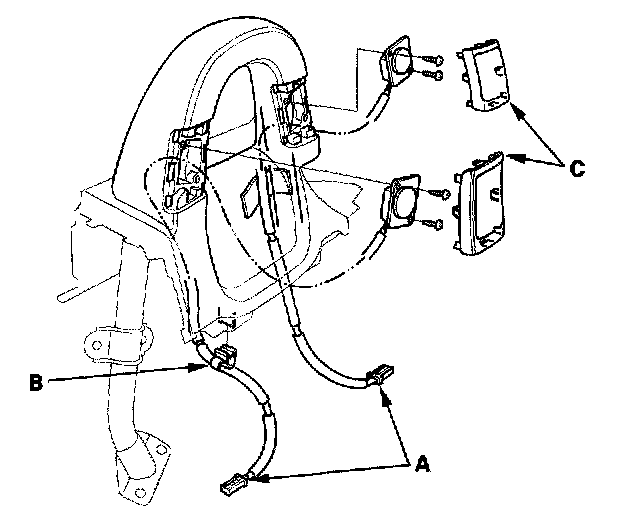

1. Remove the roll bar and upper trim assembly.




2. Disconnect the 2P or 3P connector (A). When disconnecting the 2P connector, remove the harness clip (8).
3. Remove the rear speaker grille (C) and the mounting screws.
4. Carefully pull the rear speaker harness out from the roll bar and upper trim assembly, and remove the rear speaker. Be careful not break the rear speaker harness.
5. Install in the reverse order of removal.
