Front Bumper Cover / Fascia: Service and Repair

Front Bumper Removal/Installation

NOTE:
- Have an assistant help you remove and install the front bumper.
- Take care not to scratch the front bumper and body.
- Put on gloves to protect your hands.

1. Remove the front inner fender from each side as necessary.

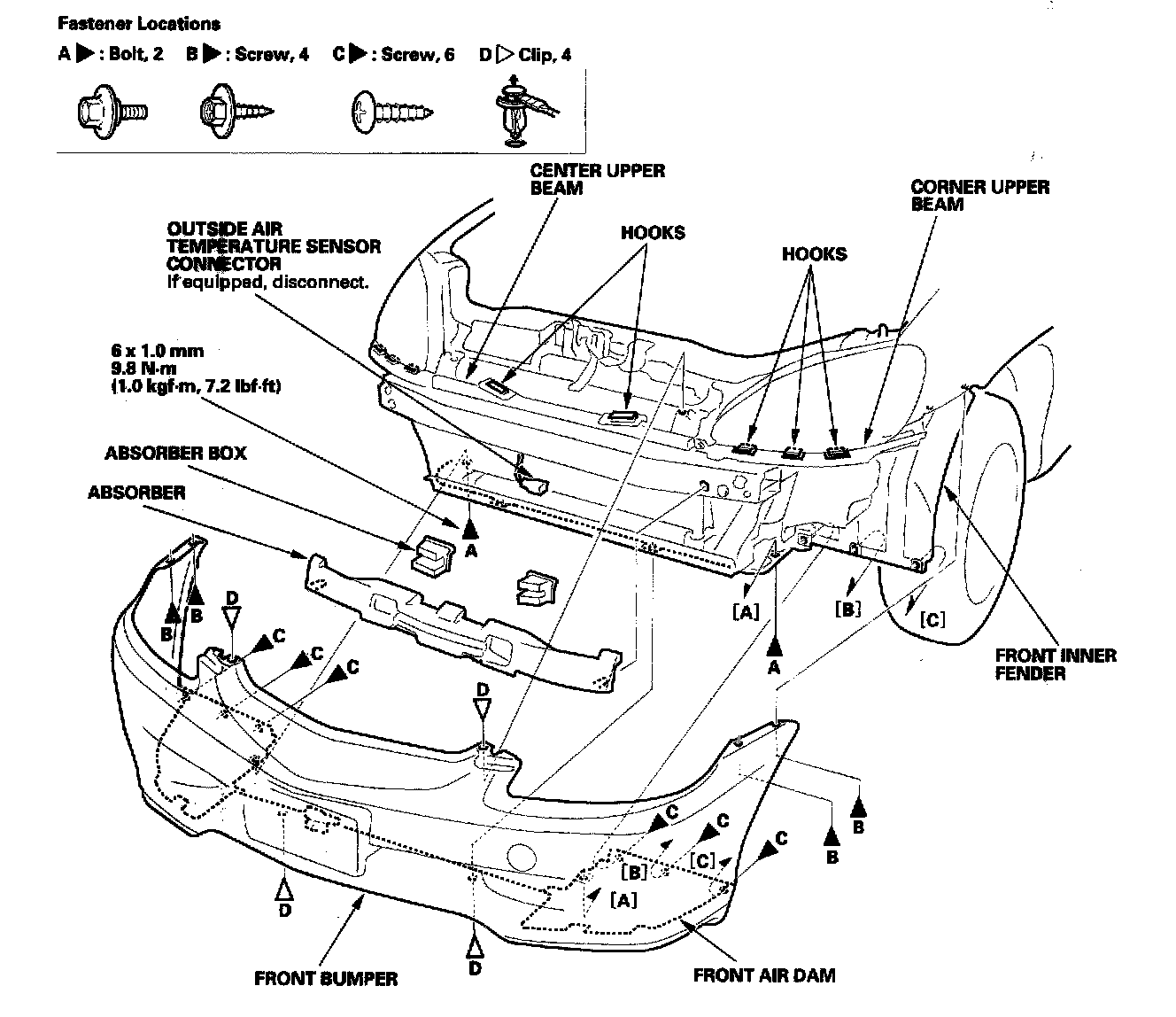

2. Remove the front bumper as shown.




3. Install the bumper in the reverse order of removal, and note these items:
- If equipped, make sure the outside air temperature sensor connector is plugged in properly.
- Make sure the front bumper engages the hooks of the center and corner upper beams securely.
- Check for damaged or stress-whitened clips, and replace them with new ones.
