Intermediate Shaft Removal

Intermediate Shaft Removal
1. Remove the right driveshaft
2. Remove the heat shield (A).

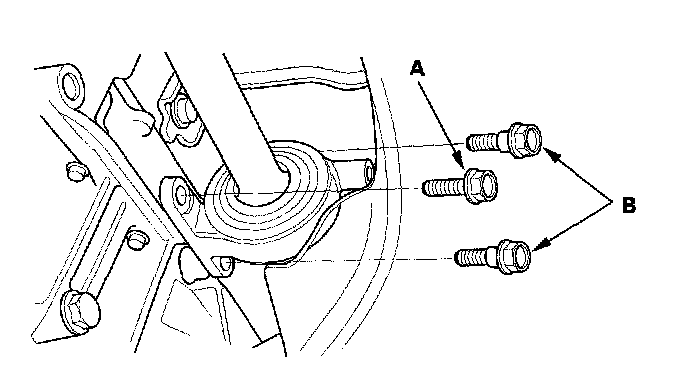

3. Remove the flange bolt (A) and the two shoulder bolts (B).

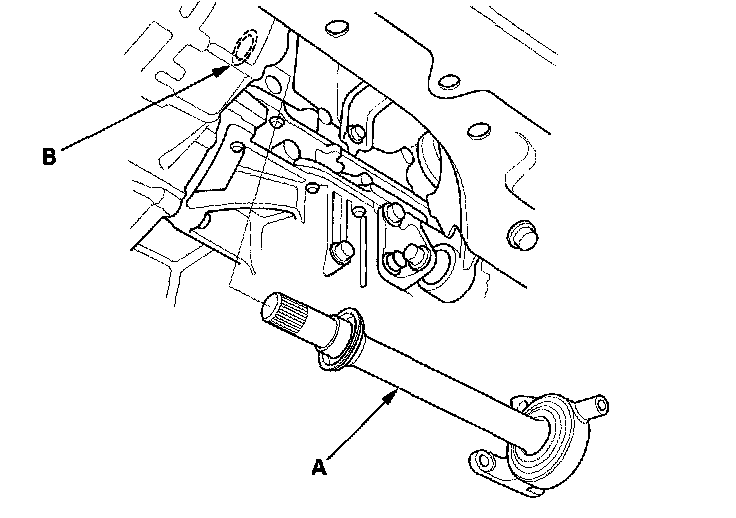

4. Remove the intermediate shaft (A) from the differential. Hold the intermediate shaft horizontal until it is clear of the differential to prevent damage to the differential oil seal (B).
