Intermediate Shaft Removal
Intermediate Shaft RemovalNOTE: M/T models only.
1. Remove the right driveshaft.
2. Remove the lower torque rod bracket (A).
3. Remove the flange bolts.

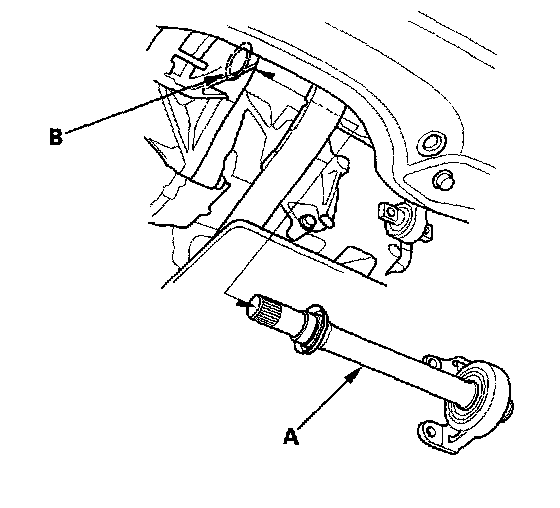

4. Remove the intermediate shaft (A) from the differential. Hold the intermediate shaft horizontal until it is clear of the differential to prevent damage to the differential oil seal (B).
