Intermediate Shaft Installation

Intermediate Shaft Installation

NOTE: M/T models only.

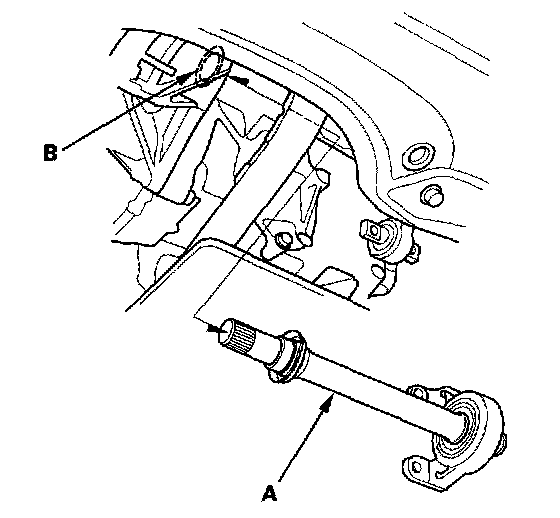

1. Use solvent or brake cleaner to thoroughly clean the areas where the intermediate shaft (A) contacts the transmission (differential), and dry with compressed air. Insert the intermediate shaft assembly into the differential. Hold the intermediate shaft horizontal to prevent damage to the differential oil seal (B).

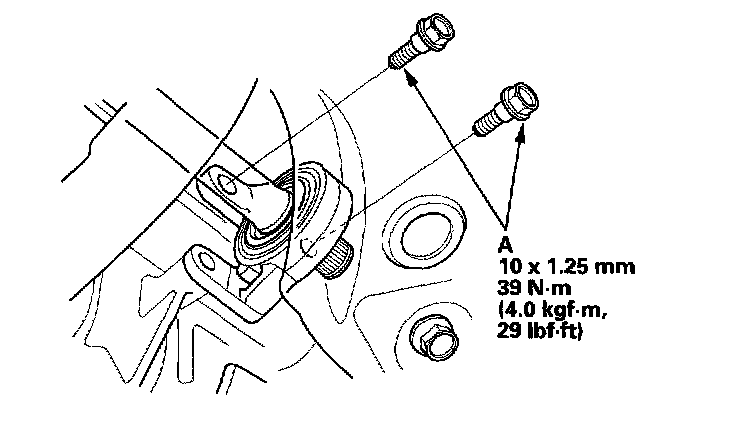

2. Install the flange bolts (A).

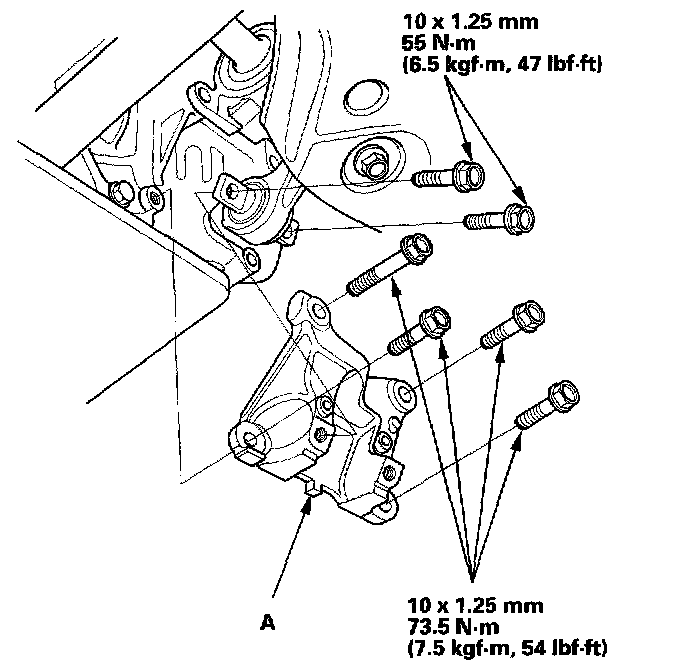

3. Install the lower torque rod bracket (A), and tighten the flange bolts in the sequence shown.
4. Install the right side driveshaft.
