Home >> Honda >> 2006 >> Civic L4-1.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Splice and Junction Connector Details >> F-CAN Communication Line (Low)

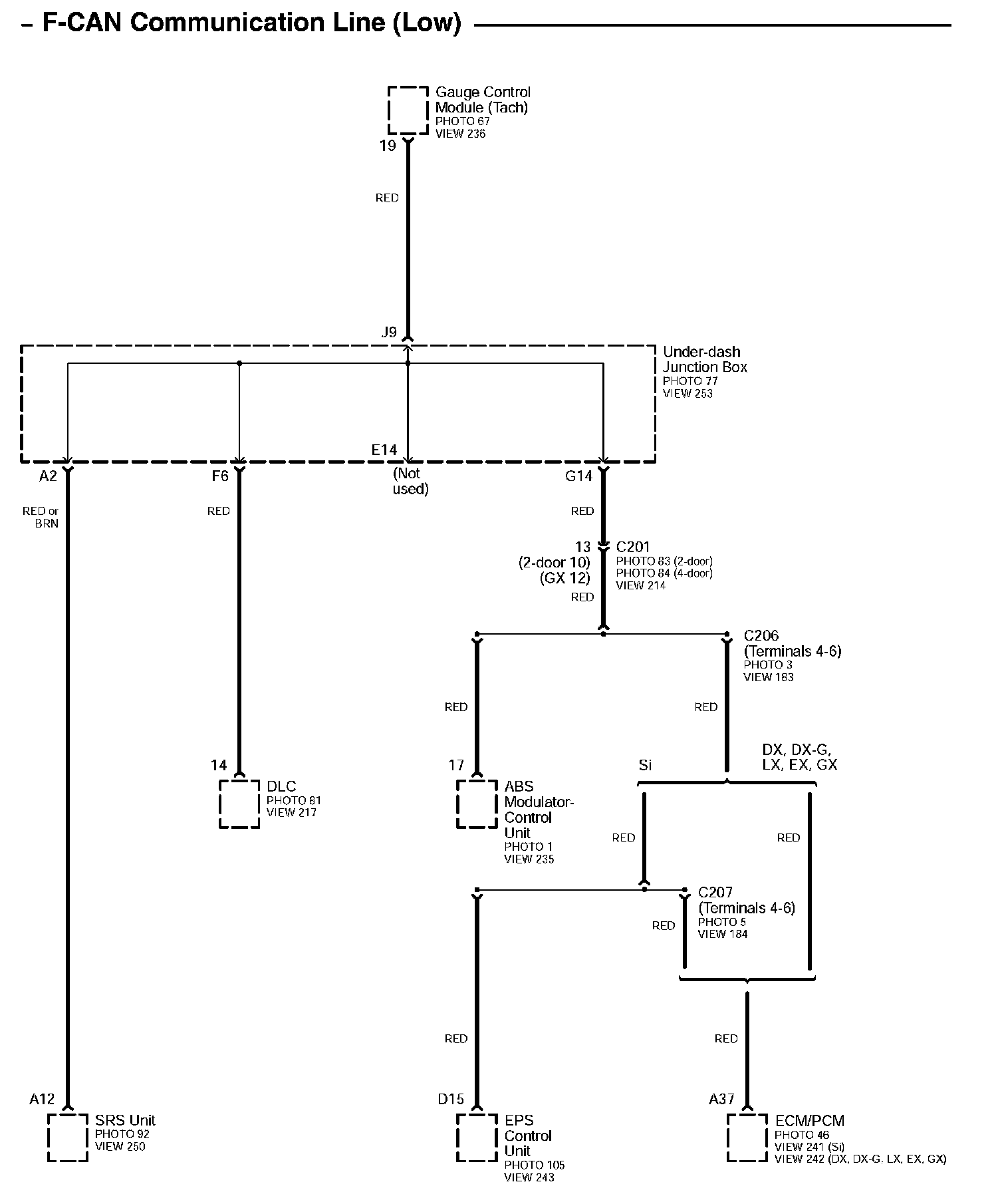

F-CAN Communication Line (Low)

F-CAN Communication Line (Low):
