Upper Torque Rod Replacement

Upper Torque Rod Replacement

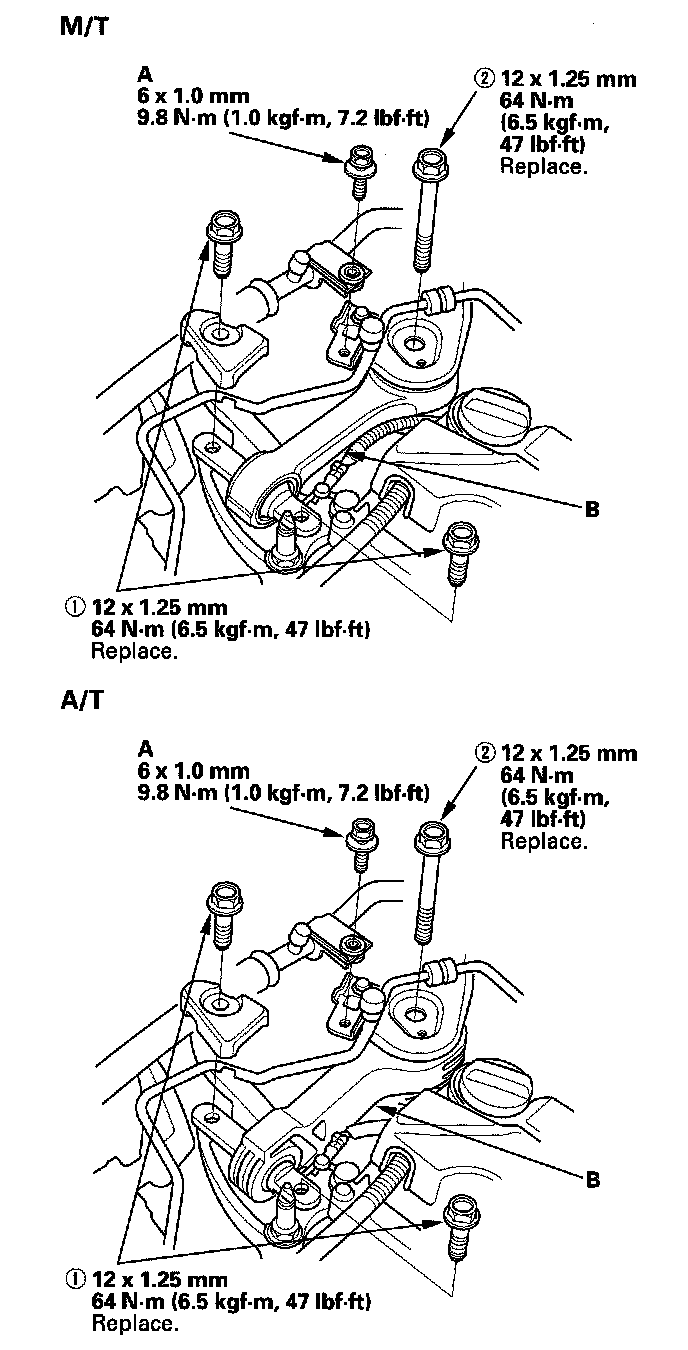

1. Remove the bolt (A) securing the A/C line, then remove the upper torque rod (B).
2. Install the upper torque rod, then tighten the new bolts in the numbered sequence shown.
