Home >> Honda >> 2006 >> Civic L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 201-225 >> 221

View 201-225: 221

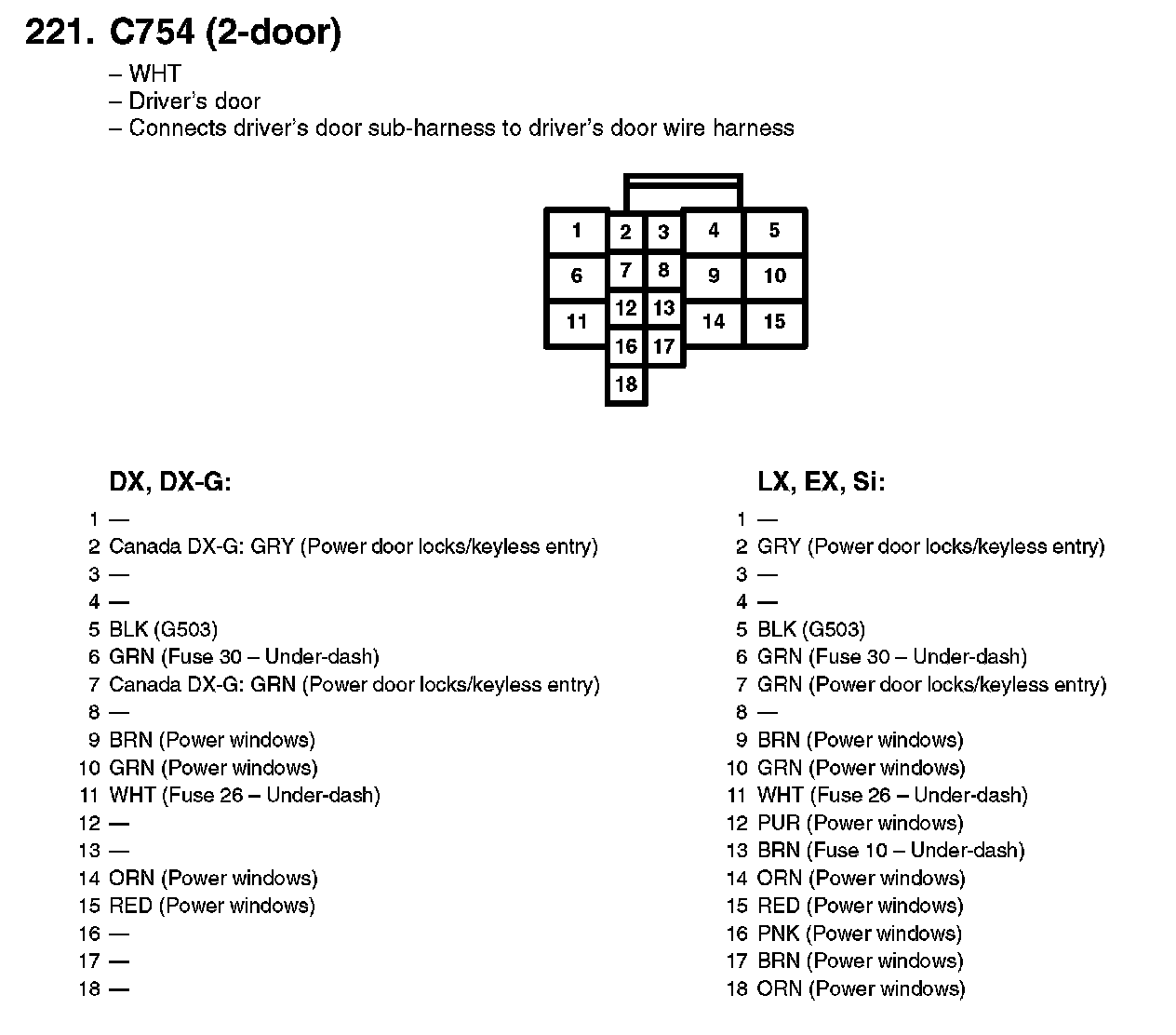

221. C754 (2-door):
