Positive Crankcase Ventilation Valve: Service and Repair

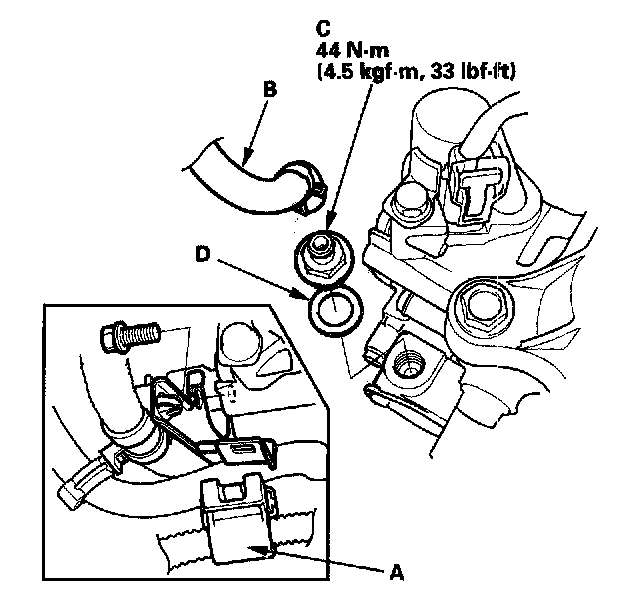

PCV Valve Replacement




1. Remove the harness holder (A).
2. Disconnect the PCV hose (B).
3. Remove the PCV valve (C).
4. Install the valve in the reverse order of removal with a new washer (D).
