Home >> Honda >> 2006 >> Civic L4-1.8L CNG >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 251-267 >> 258

View 251-267: 258

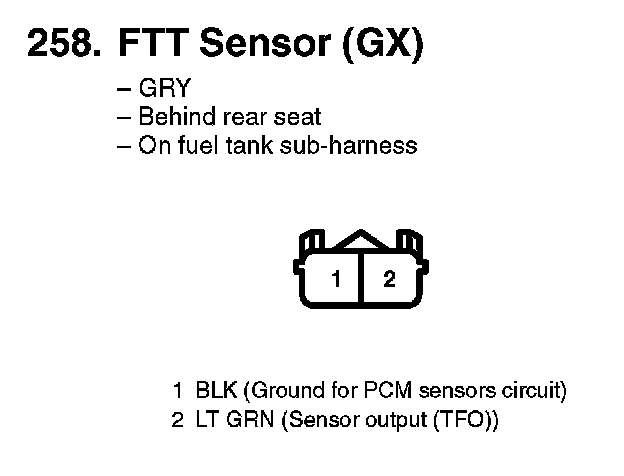

258. FTT Sensor (GX):
