Intermediate Shaft Installation

Intermediate Shaft Installation

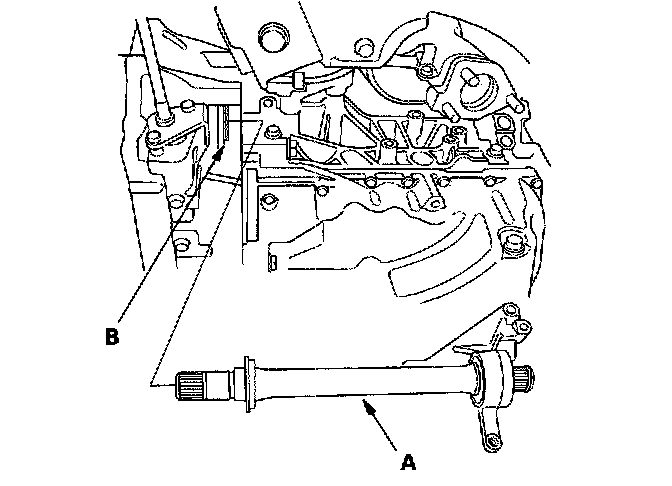

1. Use solvent or brake cleaner to thoroughly clean the areas where the intermediate shaft (A) contacts the transmission (differential), and dry them with compressed air. Insert the intermediate shaft assembly into the differential. Hold the intermediate shaft horizontally to prevent damage to the differential oil seal (B).

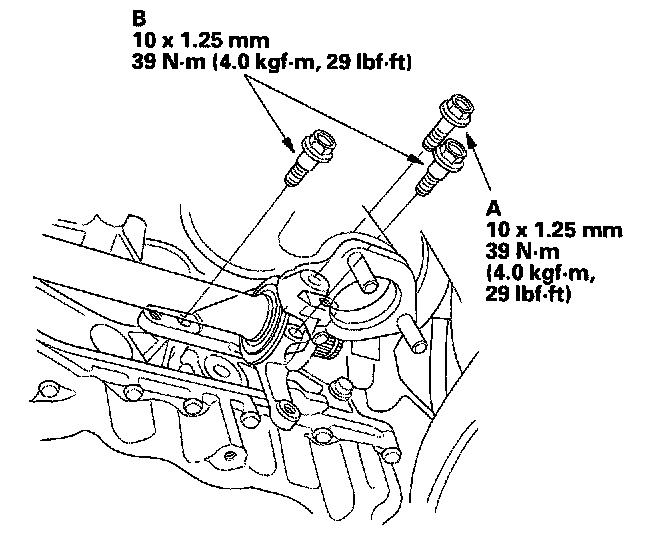

2. Install the flange bolt (A) and two dowel bolts (B).

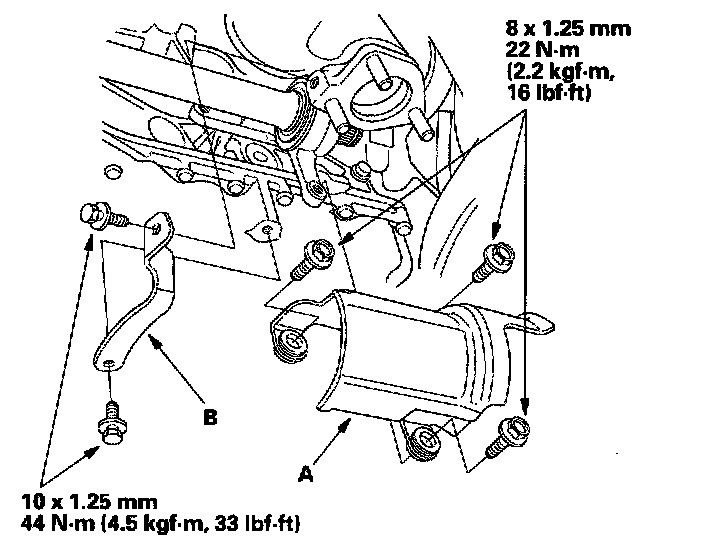

3. Install the heat shield (A) and exhaust pipe bracket
4. Install the exhaust pipe A.
5. Install the right driveshaft.
6. Refill the transmission fluid.
^ Manual transmission
^ Automatic transmission
