Front Passenger's Airbag
Front Passenger's Airbag ReplacementRemoval
1. Disconnect the battery negative cable, and wait at least 3 minutes before beginning work.
2. Remove the glove box.

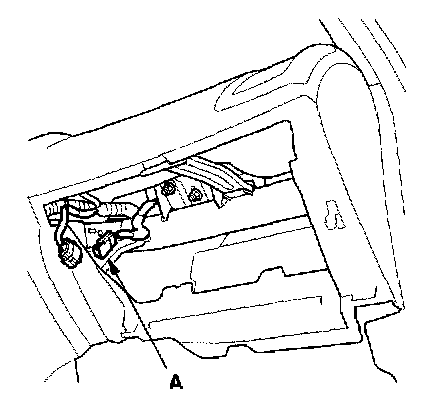

3. Disconnect the front passenger's airbag 4P connector (A) from dashboard wire harness.
4. Disconnect the passenger's A-pillar trim.
- Without side curtain airbag.
- With side curtain airbag.

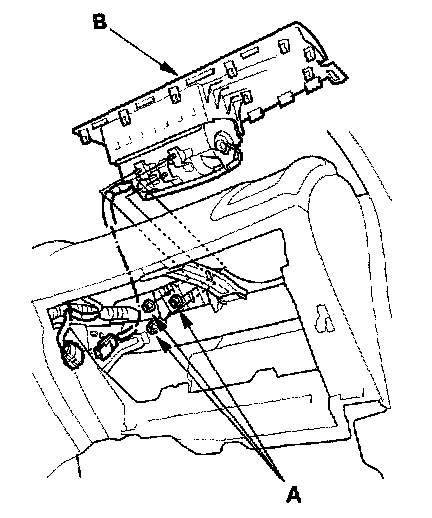

5. Remove the three mounting nuts (A) from the bracket. Cover the lid and dashboard with a cloth, and pry carefully with a flat-tip screwdriver to lift the front passenger's airbag (B) out of the dashboard.
NOTE: The airbag lid has pawls on each side which attach it to the dashboard.
Installation

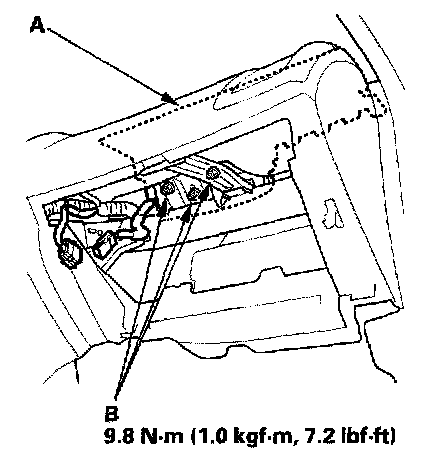

1. Place the new front passenger's airbag (A) into the dashboard. Tighten the front passenger's airbag mounting nuts (B).

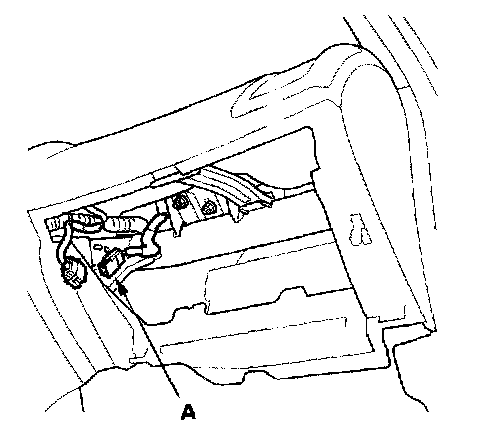

2. Connect the front passenger's airbag 4P connector (A) to dashboard wire harness, then reinstall the glove box and passenger's front pillar trim.
3. Reconnect the battery negative cable.
4. After installing the airbag, confirm proper system operation: Turn the ignition switch ON (II); the SRS indicator should come on for about 6 seconds and then go off.
