Home >> Honda >> 2006 >> Accord V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 51-75 >> 74

View 51-75: 74

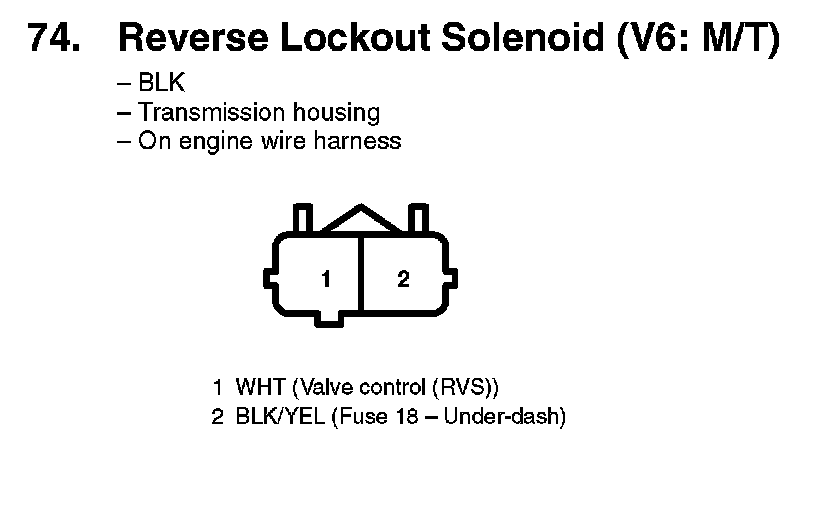

74. Reverse Lockout Solenoid (V6: M/T):
