Home >> Honda >> 2006 >> Accord V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 226-250 >> 238

View 226-250: 238

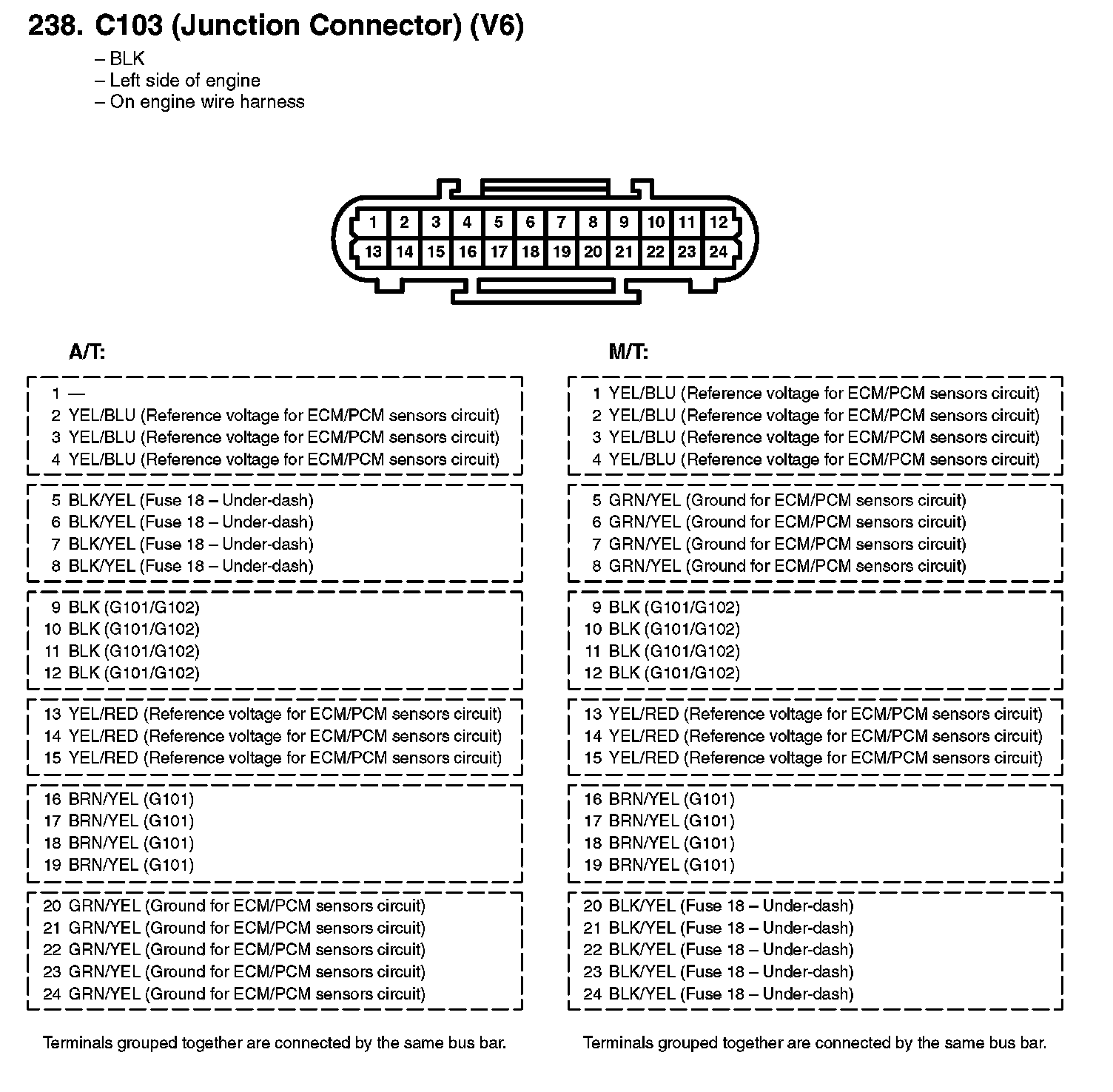

238. C103 (Junction Connector) (V6):
