Vacuum Brake Booster: Service and Repair
Brake Booster Replacement1. Remove the master cylinder.

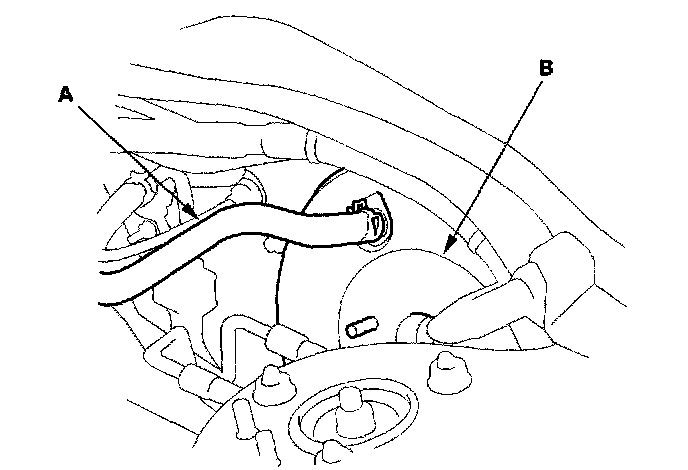

2. Disconnect the vacuum hose (A) from the brake booster (B).
3. Remove the under-hood fuse/relay box cover.

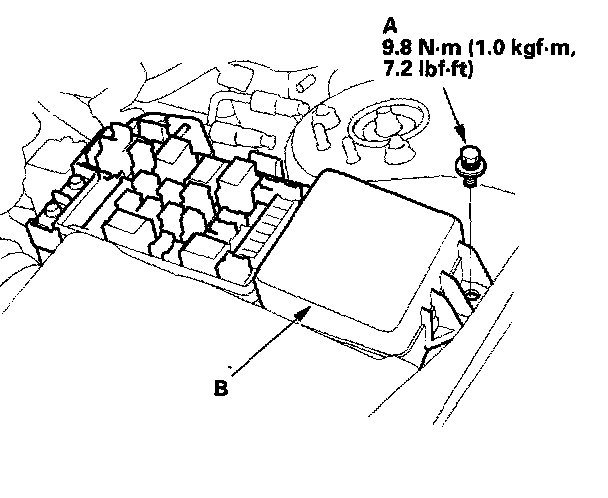

4. Remove the under-hood fuse/relay box mounting bolt (A), then remove the under-hood fuse/relay box (B) from the body.

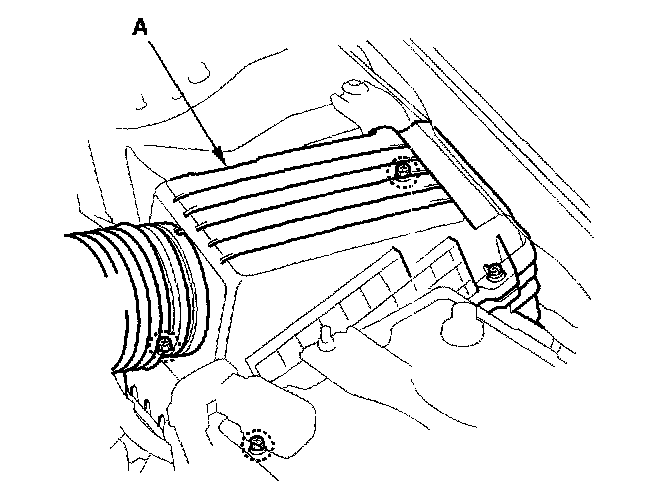

5. Remove the air cleaner assembly (A).

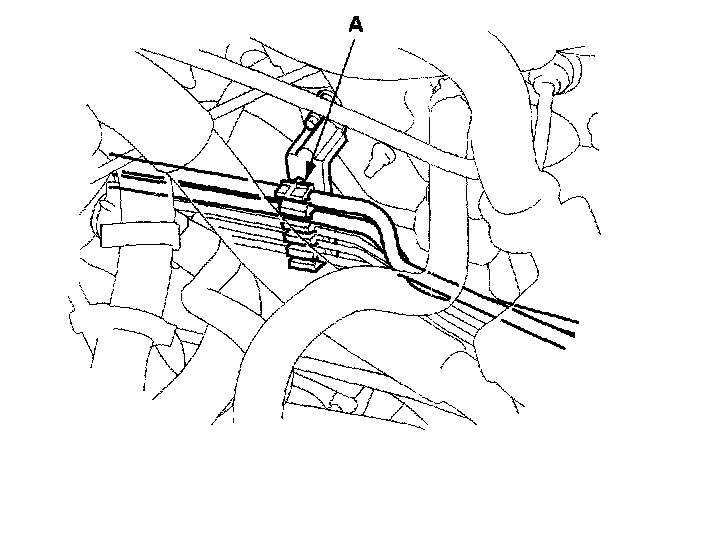

6. Remove the primary and secondary brake lines from the hose clamp (A).
7. Remove the clip (A) and the joint pin (B), then disconnect the yoke from the brake pedal.
8. Remove the brake booster mounting nuts (C).

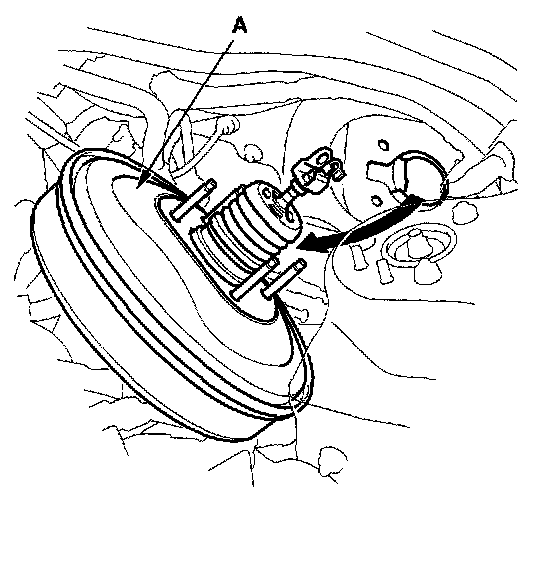

9. Remove the brake booster (A) from the engine compartment.
NOTICE:
^ Be careful not to damage the booster surfaces and threads of the booster stud bolts.
^ Be careful not to bend or damage the brake lines.
10. Install the brake booster in the reverse order of removal, and note these items:
^ Adjust the pushrod length before installing the brake booster.
^ Use a new clip whenever installing.
^ After installing the brake booster and master cylinder, fill the reservoir with new brake fluid, bleed the brake system, and adjust the brake pedal height and free play.
