Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda
>>
2006
>>
Accord L4-2.4L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Splice and Junction Connector Details
>>
Vehicle Speed Sensor Signal
Vehicle Speed Sensor Signal

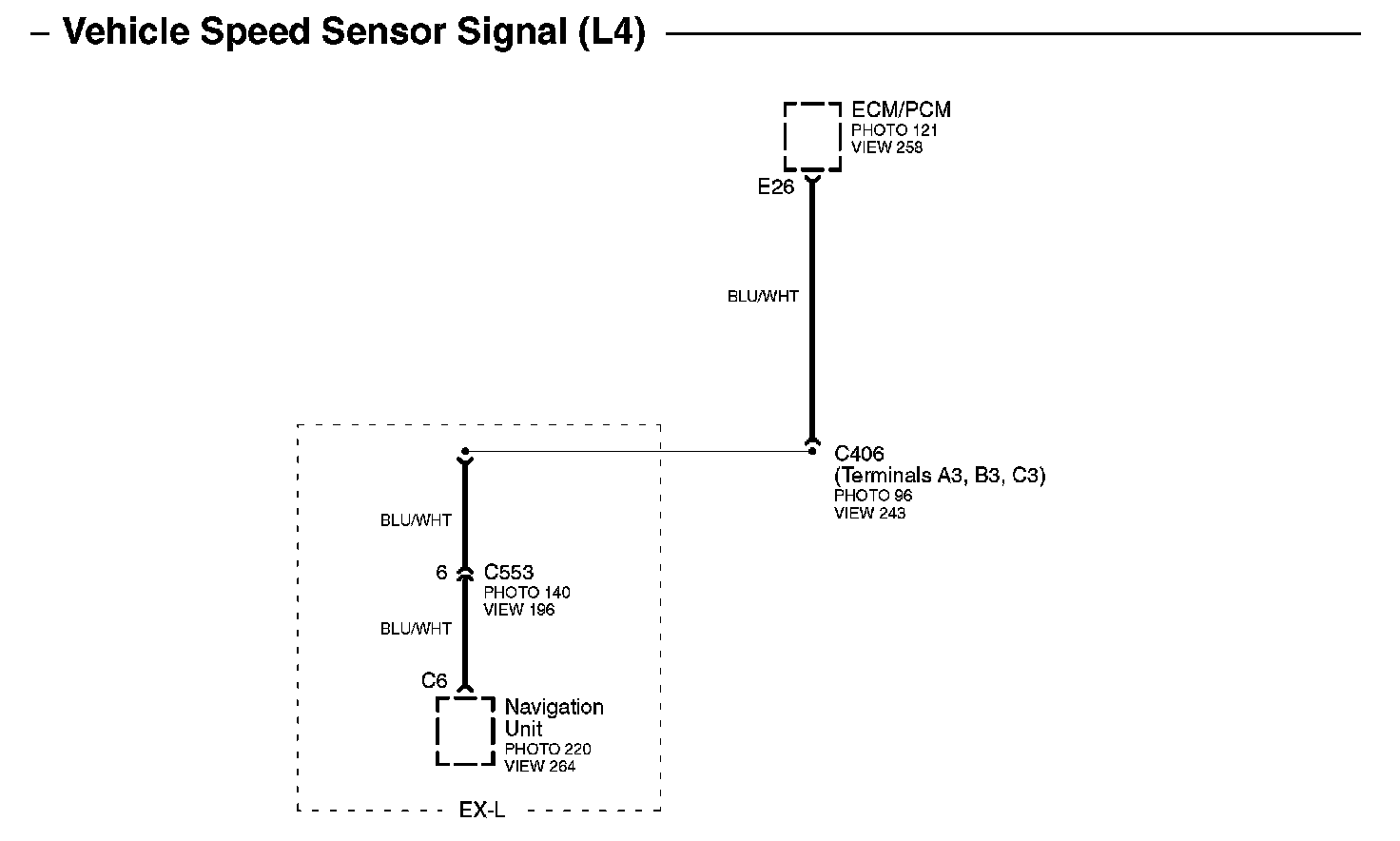

Vehicle Speed Sensor Signal (L4):
