Home >> Honda >> 2006 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 276-298 >> 278

View 276-298: 278

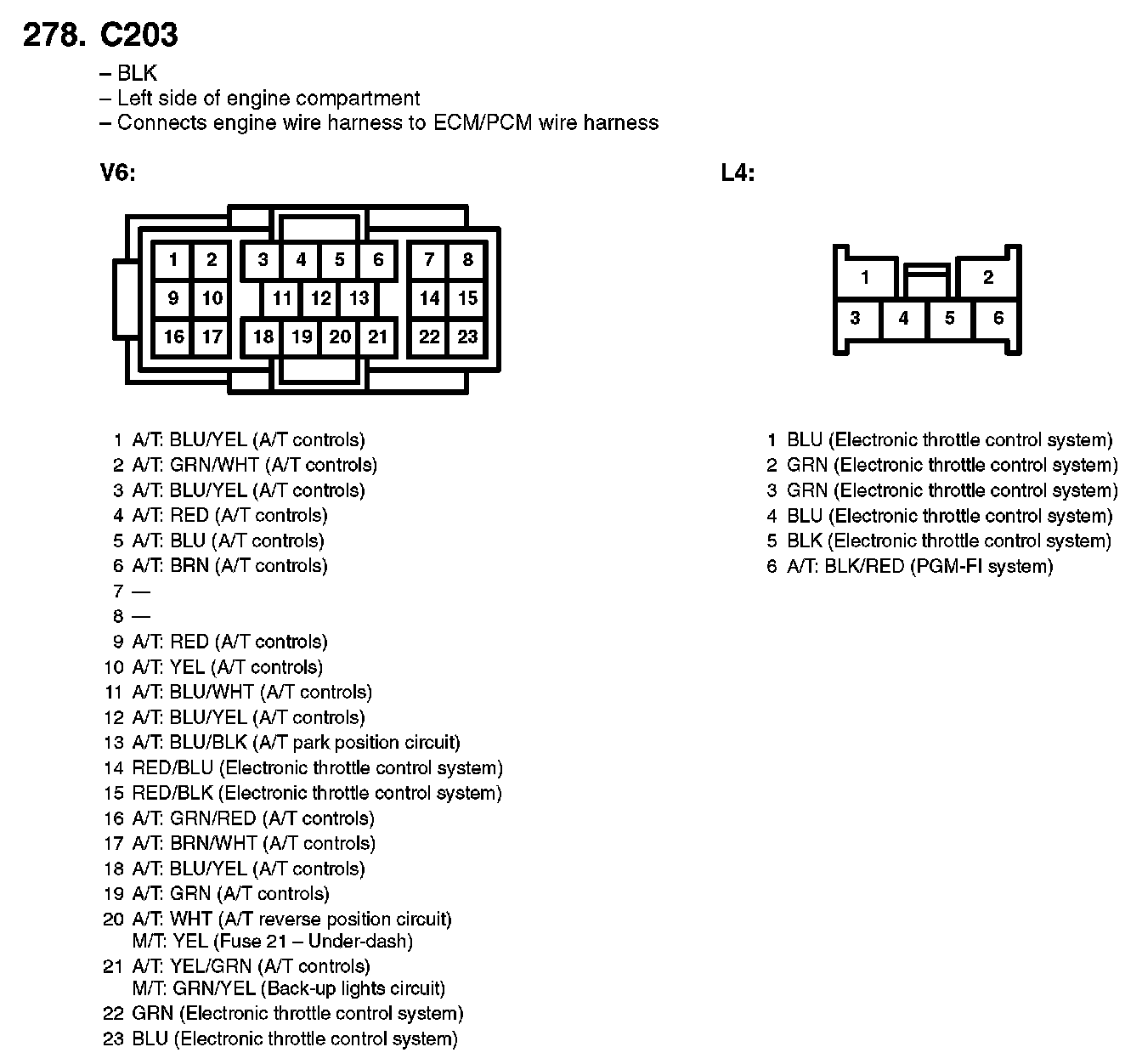

278. C203:
