2-Door

Rear Seat-back Latch Replacement

Special Tools Required
KTC trim tool set SOJATP2014

2-door

NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to bend or scratch the interior trim.

1. Remove the rear bulkhead cover.

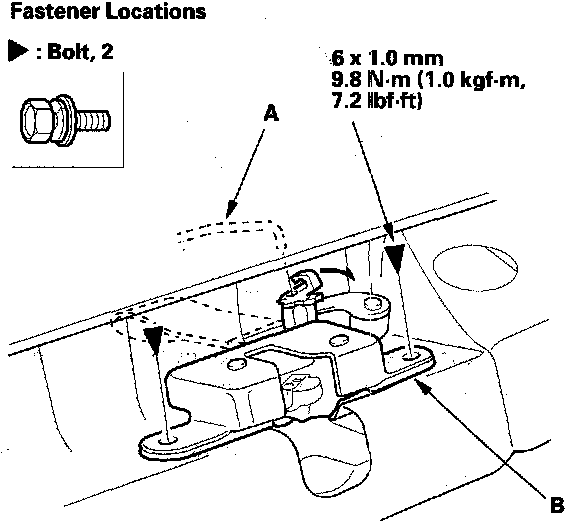

2. Disconnect the cylinder rod (A), remove the bolts, then remove the seat-back latch (B).
3. Install the latch in the reverse order of removal, and note these items:
- Make sure the cylinder rod is connected securely.
- Make sure the seat-back locks securely and unlocks properly.
