Front Bumper Cover / Fascia: Service and Repair
Front Bumper Removal/Installation2-door
NOTE:
- Have an assistant help you when removing and installing the front bumper.
- Take care not to scratch the front bumper and body.
- Put on gloves to protect your hands.

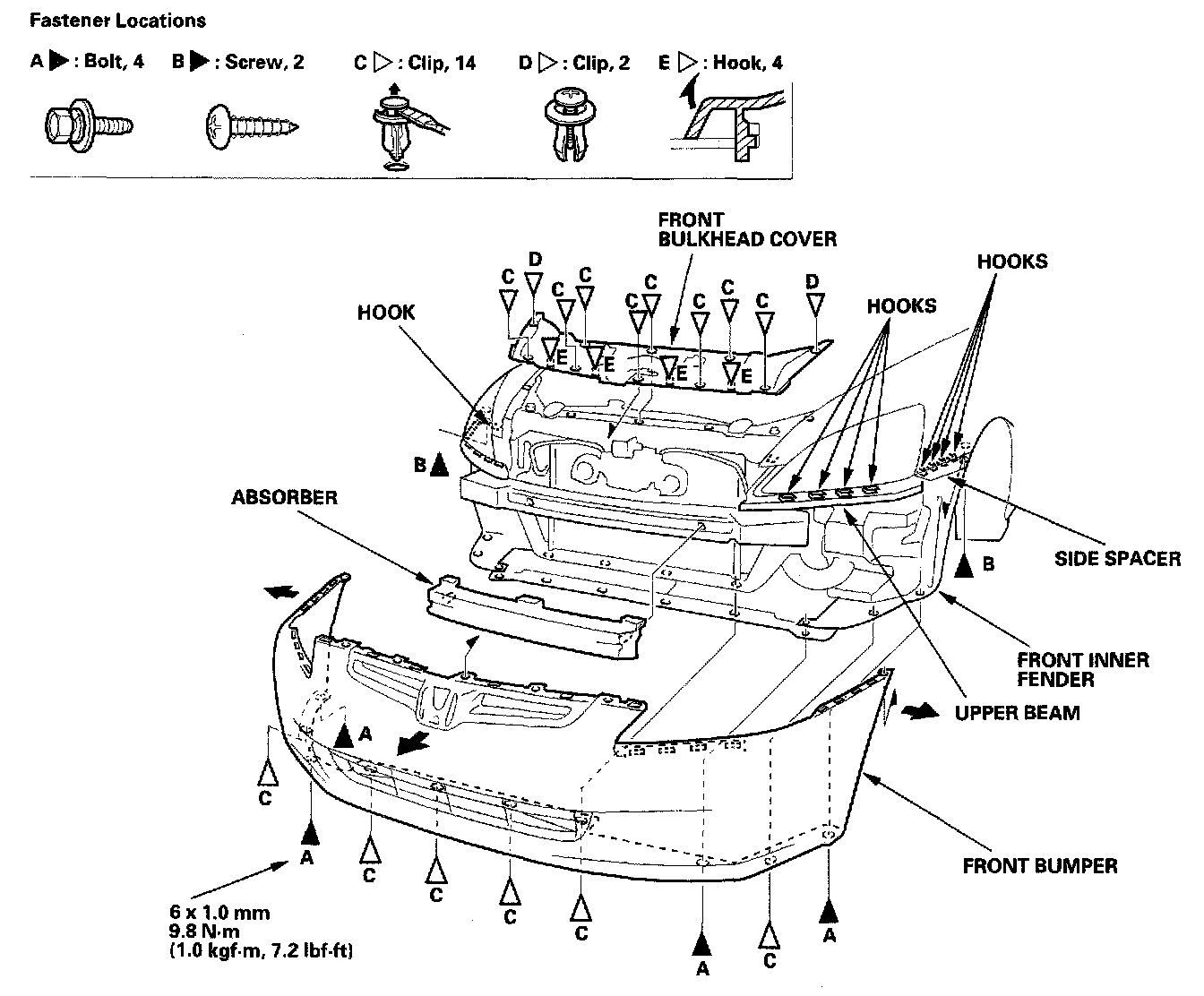

1. Remove the front bumper as shown.
2. Install the bumper in the reverse order of removal, and note these items:
- Make sure the front bumper engages the hooks of the side spacers and upper beams on both sides securely.
- Replace any damaged clips.
4-door
NOTE:
- Have an assistant help you when removing and installing the front bumper.
- Take care not to scratch the front bumper and body.
- Put on gloves to protect your hands.

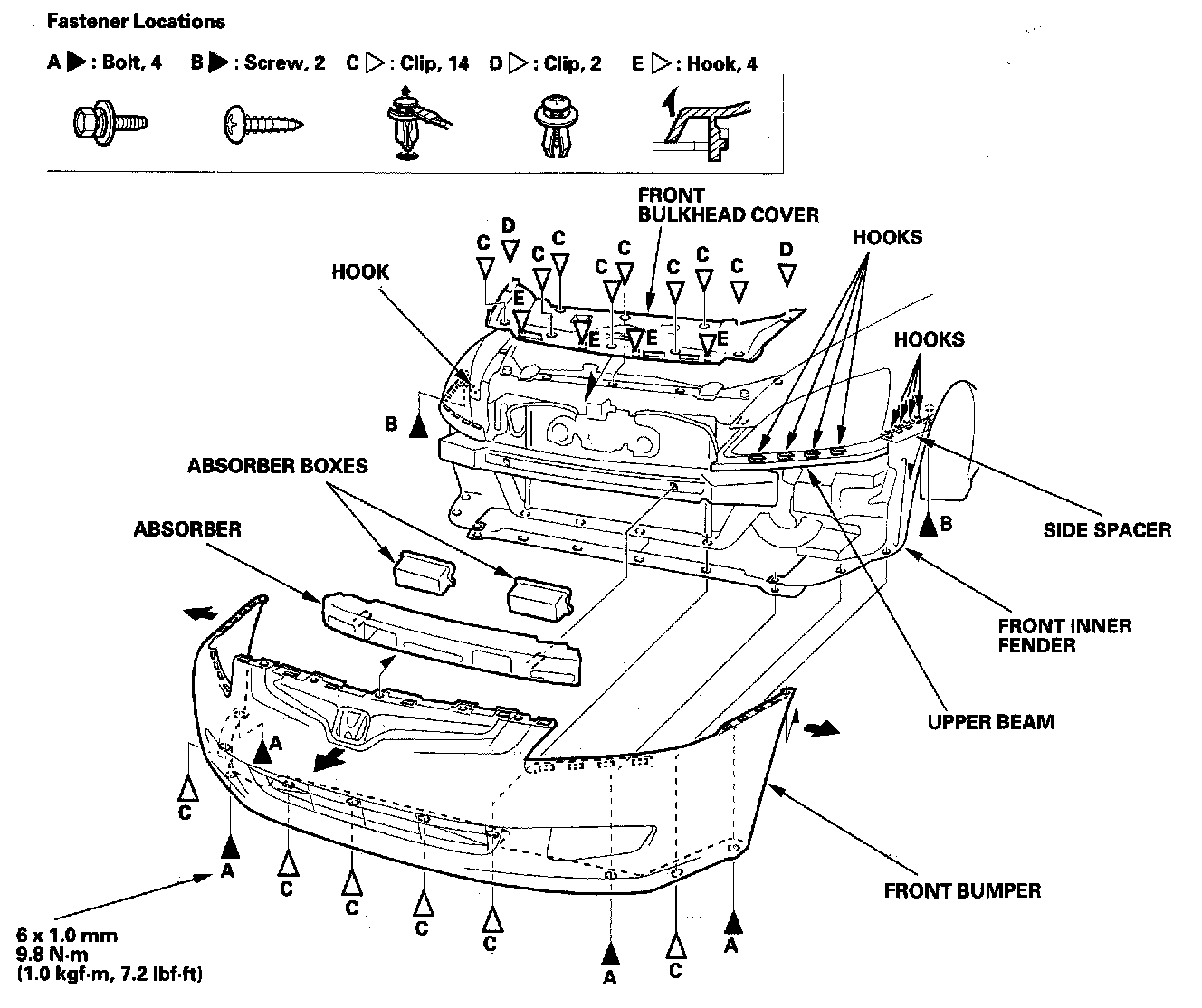

1. Remove the front bumper as shown.
2. Install the bumper in the reverse order of removal, and note these items:
- Make sure the front bumper engages the hooks of the side spacers and upper beams on both sides securely.
- Replace any damaged clips.
