Convertible Top
>>
Convertible Top Control Module
Convertible Top Control Module

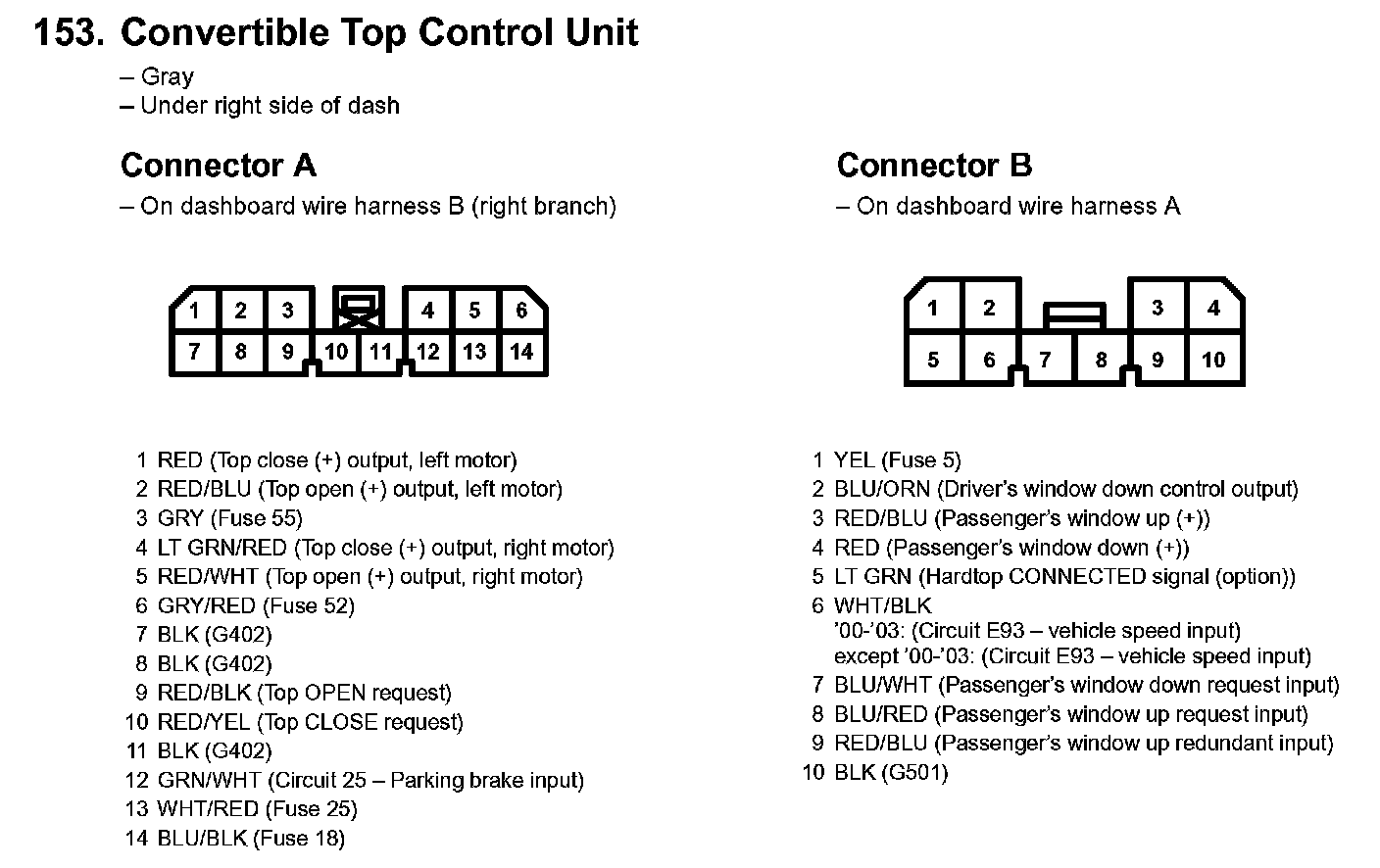

153. Convertible Top Control Unit:
