Home >> Honda >> 2005 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 126-150 >> 149

Views 126-150: 149

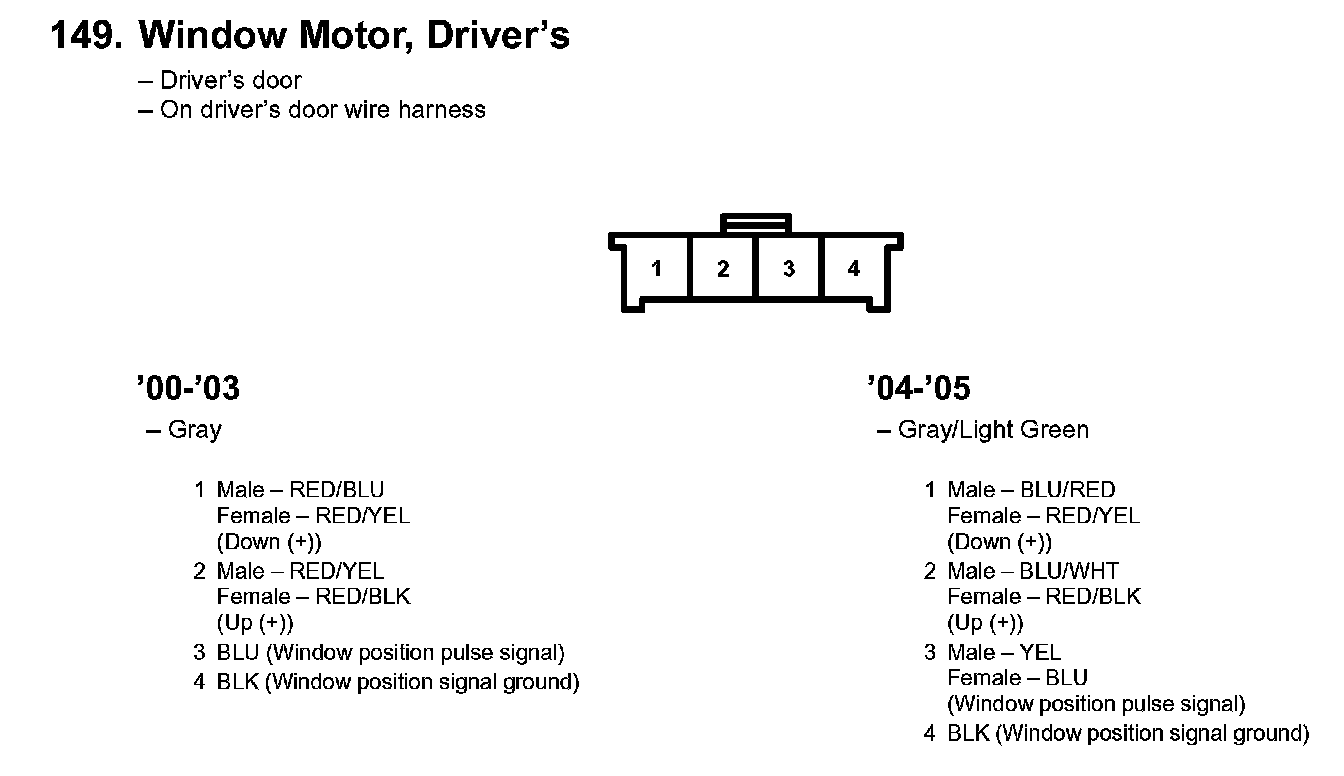

149. Window Motor, Driver's:
