Home >> Honda >> 2005 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 101-125 >> 112

Views 101-125: 112

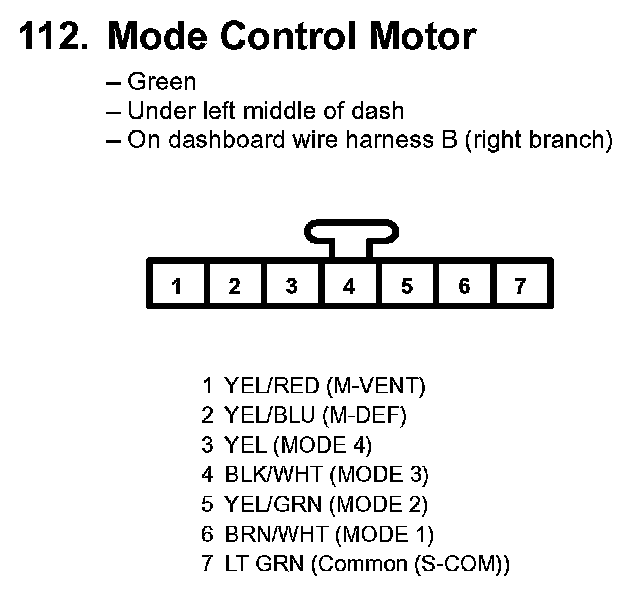

112. Mode Control Motor:
