Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda
>>
2005
>>
Insight L3-1.0L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Tail Lamp Pigtail Assembly
Tail Lamp Pigtail Assembly

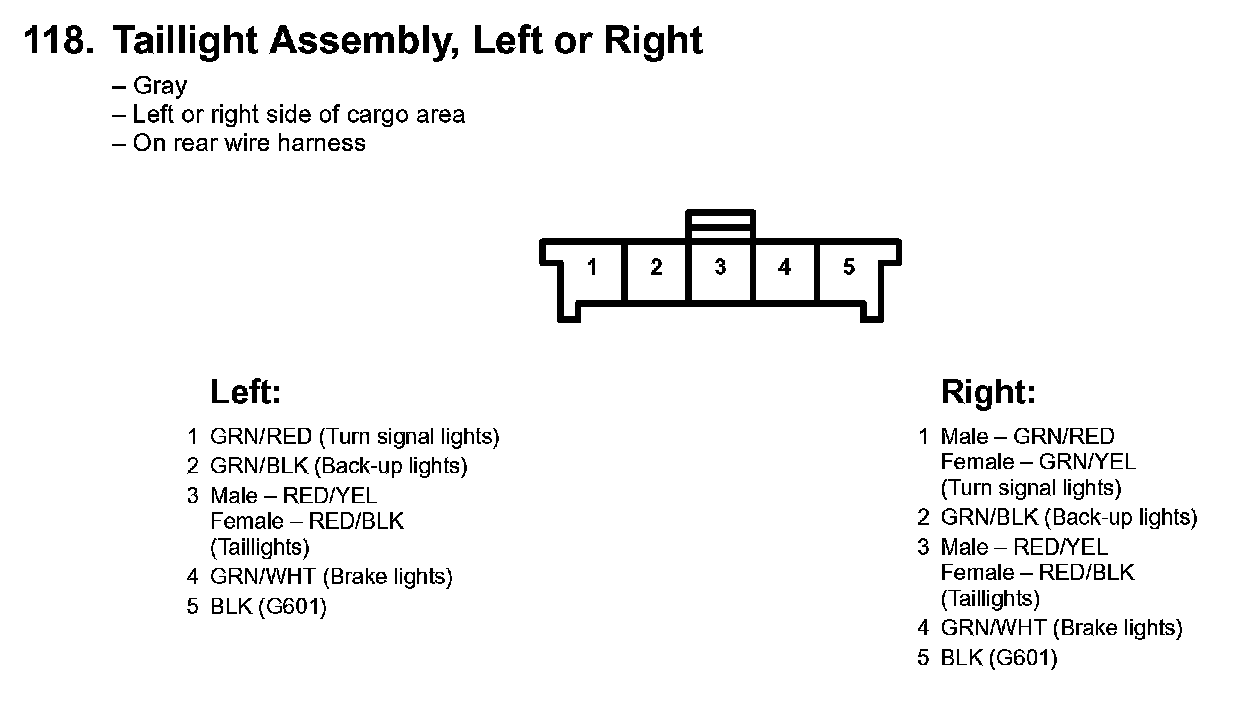

118. Taillight Assembly, Left Or Right:
