Home >> Honda >> 2005 >> Civic L4-1.7L CNG >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 176-200 >> 183

Views 176-200: 183

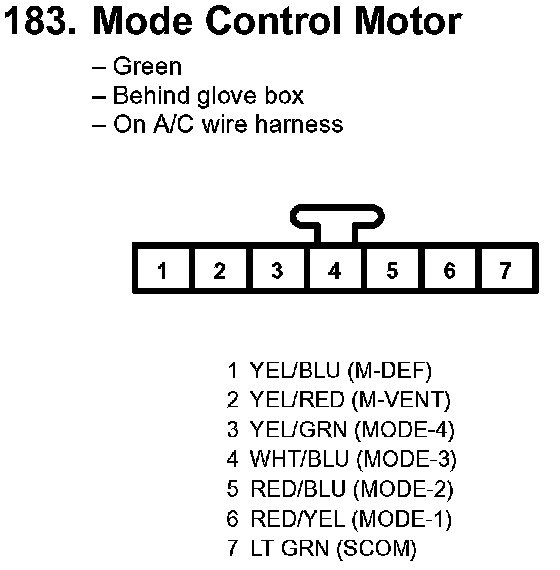

183. Mode Control Motor:
