Throttle Actuator Control Module Sub-harness
Throttle Actuator Control Module Sub-harness

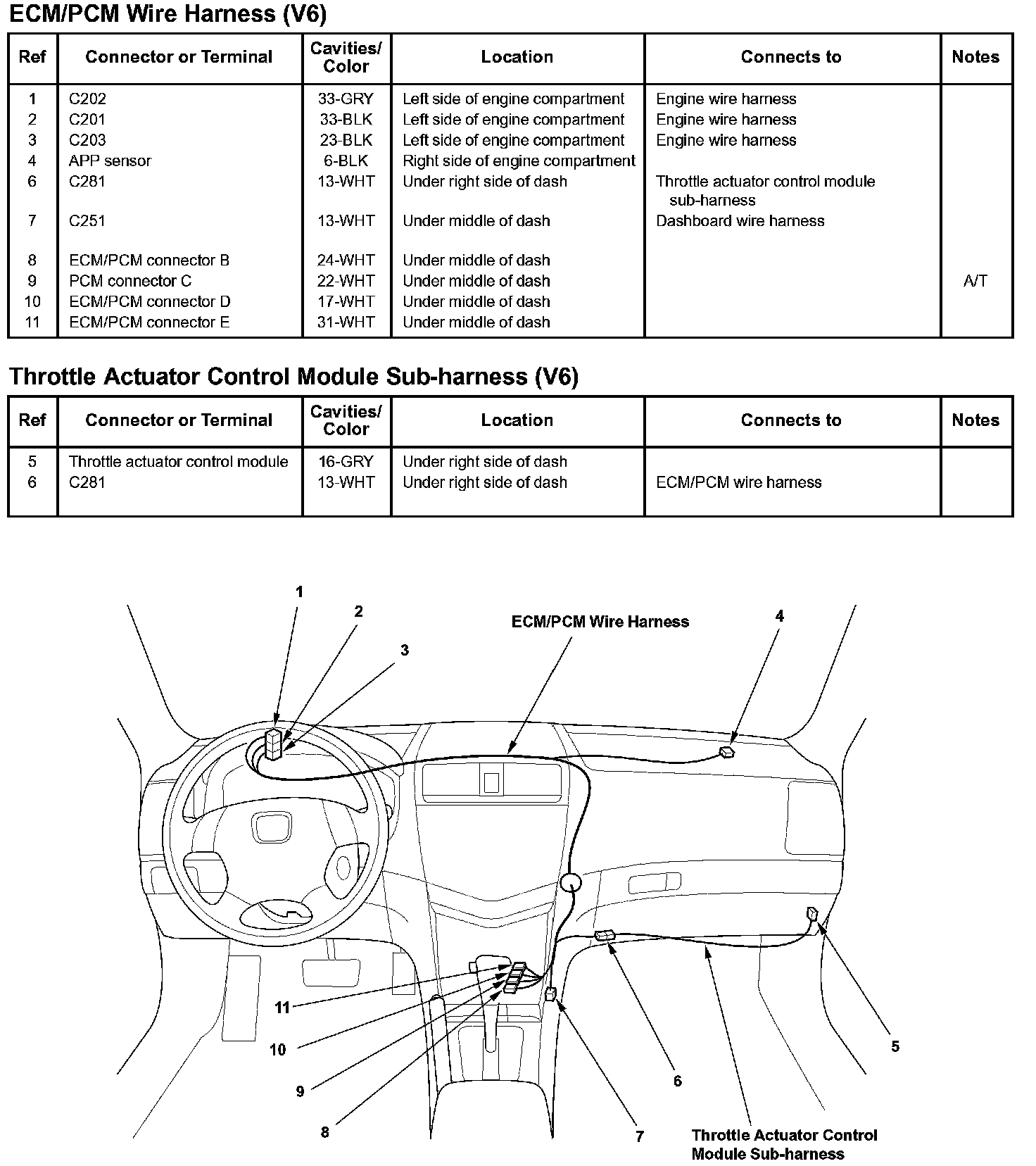

ECM/PCM Wire Harness/ Throttle Actuator Control Module Sub-harness:
